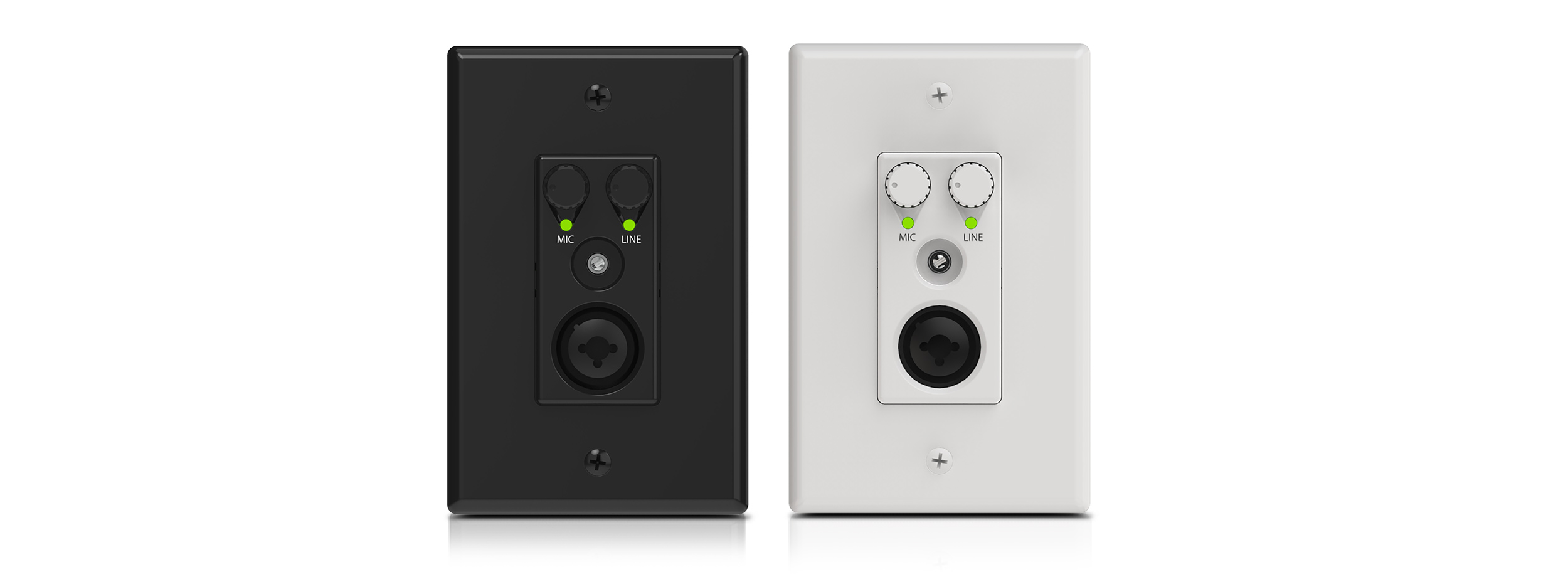

The QSC Axiom ML1 (Attero Tech) is a compact analog audio extension module that carries mic and line sources over standard Category cabling to a paired host unit such as the AXP2O. It is aimed at cost-conscious commercial installs in retail, restaurants, education and hospitality where local input connectivity is needed without running long analog home-runs.
Key Features
- XLR microphone input with adjustable gain for dynamic mics
- 1/4" line input with fixed attenuation pad
- 3.5 mm consumer input with adjustable gain
- Per-input signal LED metering
- Mono summing so multiple units can be daisy-chained
Because the ML1 is an input extender, it must be paired with a compatible Axiom host device to appear on the audio network; it is not a standalone networked endpoint. It installs in a 1/3-rack, 1RU footprint or on a surface. This item has been discontinued by QSC.
