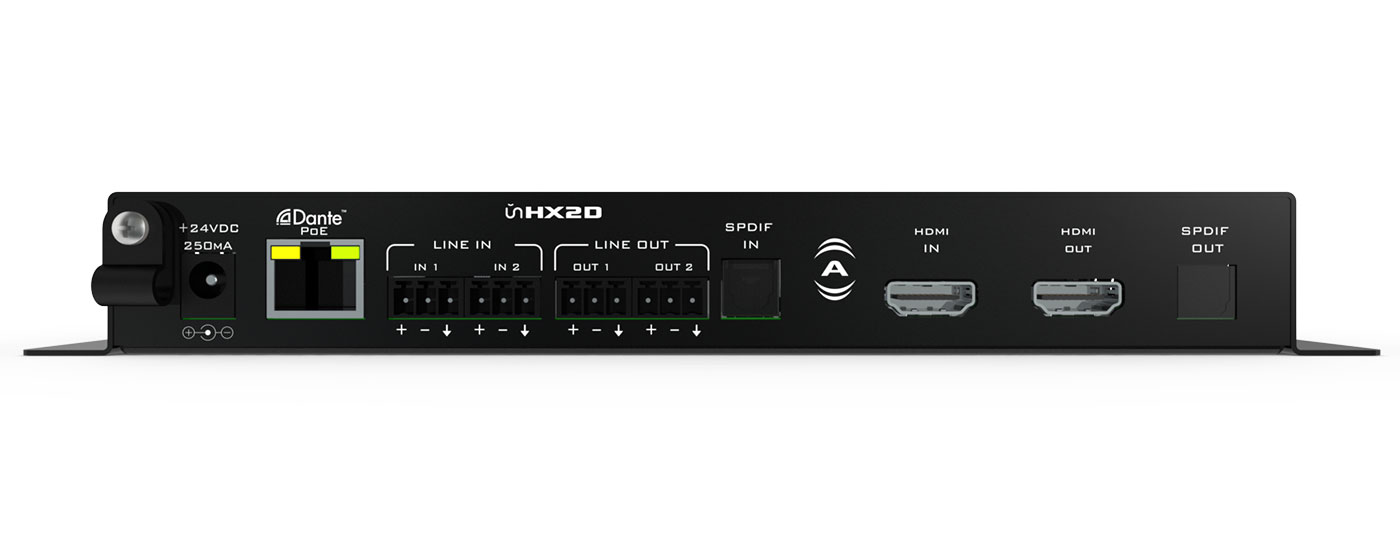

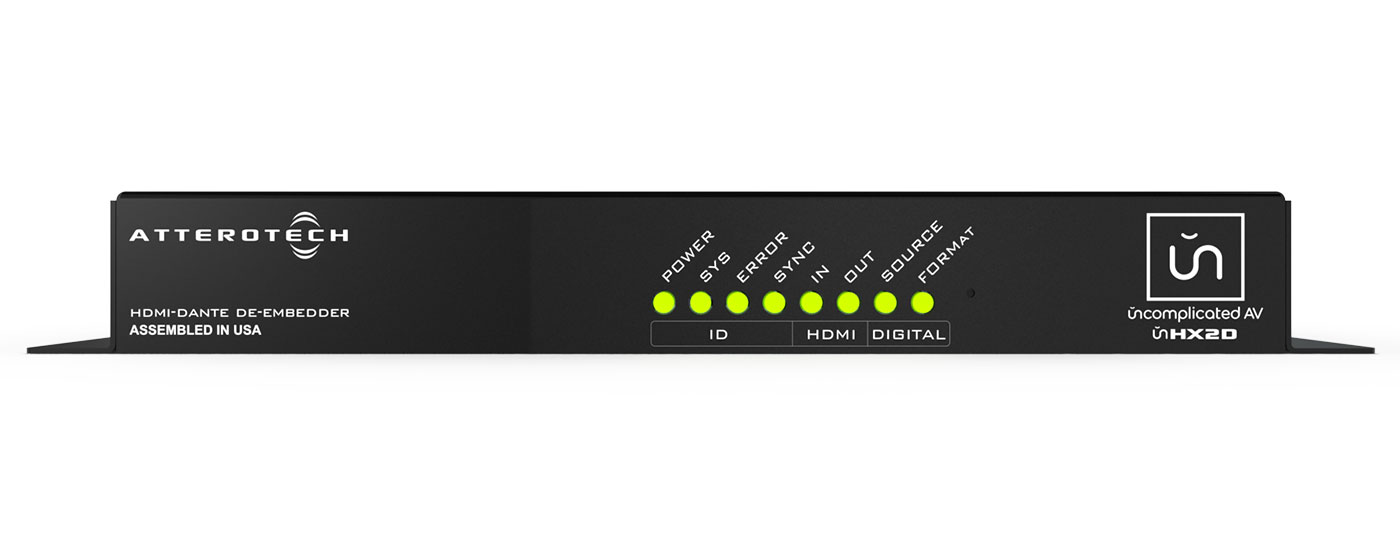

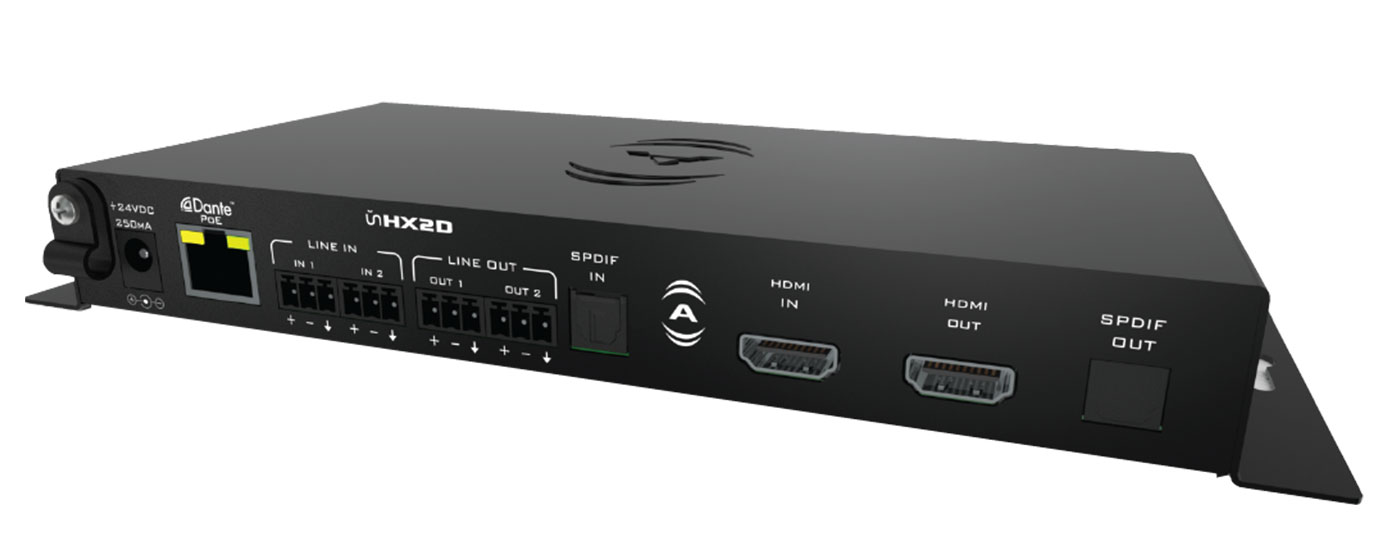

The unHX2D is a Dante enabled HDMI de-embedder/embedder designed to bridge
two-channel PCM HDMI audio to/from a Dante/AES67 audio network. In addition, the
unHX2D includes two line level analog inputs and outputs that can be independently
bridged to/from a Dante/AES67 audio network. An adjustable audio delay buffer is
included on the Dante™ output for audio and video lip sync. The unHX2D features flexible
audio routing between system input sources and outputs, and facilitates bridging audio
from either video sources or monitors to a Dante/AES67 network. The HDMI output
operates as a pass thru repeater of HDMI input video source.
unHX2D Specifications
Analog Audio Inputs
Input type Balanced 3-pin line level
Input sensitivity
–10 dBV (consumer) or
+4 dBu (professional),
software-selectable
Input impedance 10k Ω
Maximum input levels
+20 dBu (+/- 0.5 dB) @ +4 dBu
input sensitivity
+10 dBV (+/- 0.5 dB) @
-10 dBV input sensitivity
THD+N < 0.005 %
Dynamic range > 105 dB
Analog Audio Outputs
Output type Balanced 3-pin line level
Output impedance –10 dBV (consumer) or +4 dBu (Pro)
software selectable
Maximum output level 10 kΩ
THD+N
+20 dBu (+/- 0.5 dB) @ +4 dBu
Input Sensitivity
+10 dBV (+/- 0.5 dB) @
-10 dBV input sensitivity
S/PDIF Audio Inputs
Supported formats S/PDIF (IEC-60598)
2ch PCM, 24 bit
Supported sample rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
192 kHz
THD+N < 0.005 %
S/PDIF Audio Output (Mirrors
HDMI Input Audio)
Supported formats
S/PDIF (IEC-60598)
2ch PCM, 24 bit
compressed multi-channel in
Pass Through mode
Supported sample rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
192 kHz
THD+N < 0.005 %
HDMI Audio Inputs/Outputs
Supported formats 2-CH PCM, 24 bit
Supported sample rates 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz,
192 kHz
THD+N < 0.005 %
