Features

  • Capacitive LCD Touch Surface: In-plane switching (IPS) technology
  • High Resolution Display: 1280x720 pixels with 400 Nits (brightness)
  • Power Over Ethernet: Allows for simplified single cable installation
  • Universal Mounting Options: Included accessories for mounting to US standard and European wall and junction boxes

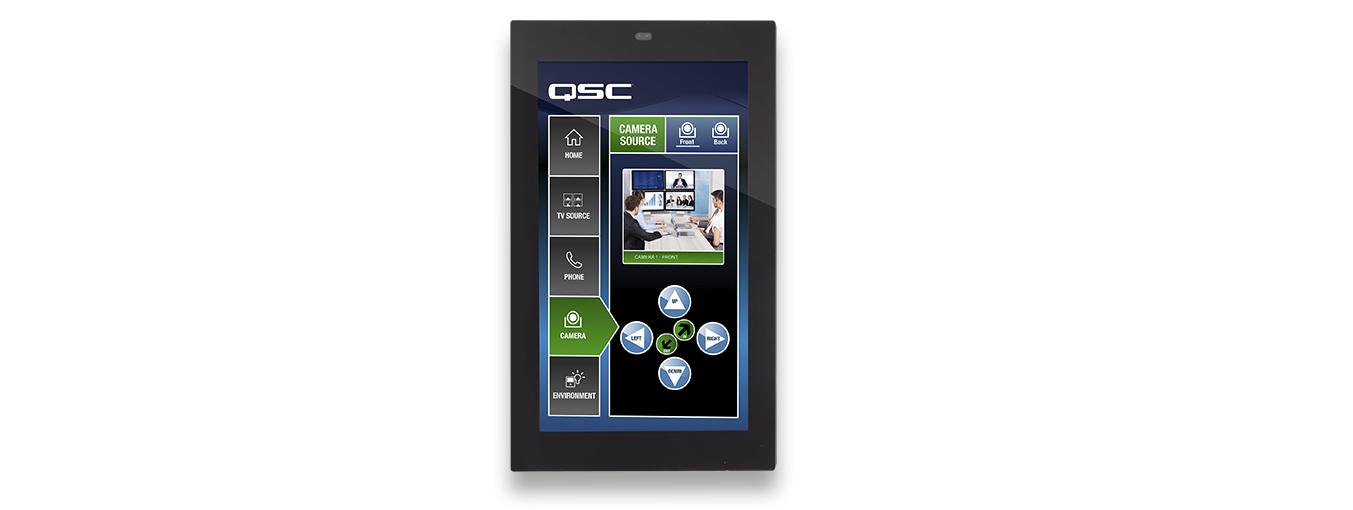

  • Versatile: Ability to operate in portrait or landscape orientation
  • Complete design freedom: Drag and drop any control Q-SYS element from a Q-SYS design schematic into UCI Editor and easily deploy your design to the touch screen, without any programming experience. Q-SYS UCI Editor allows the import of room diagrams, corporate logos or other graphical elements in all major graphic file formats.
Price: CALL
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: TSC-55w-G2-BK

    Description

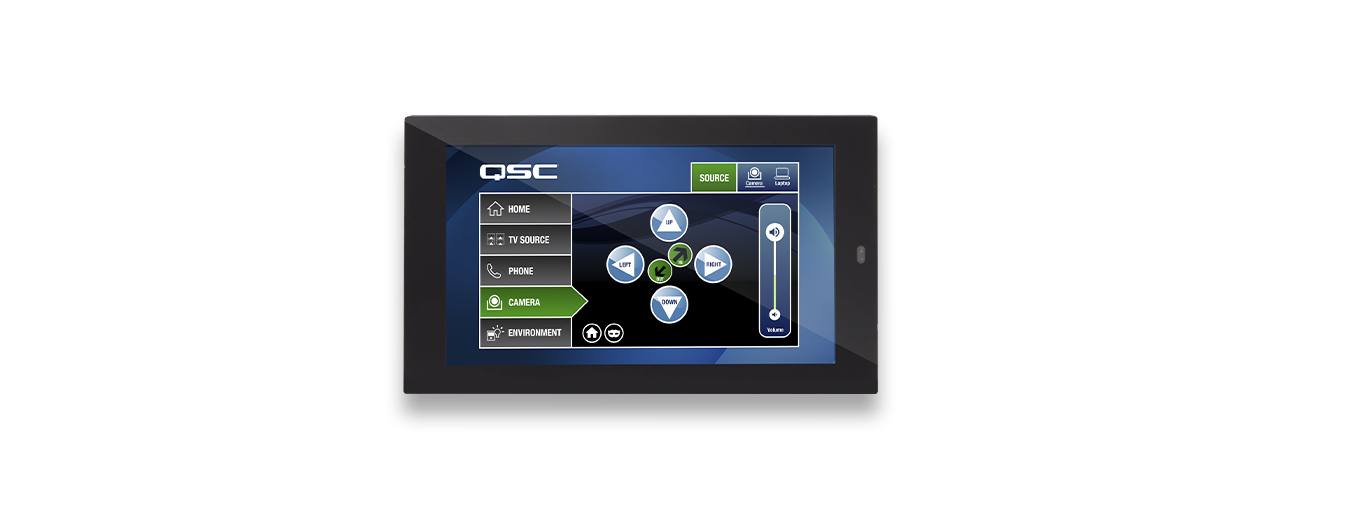

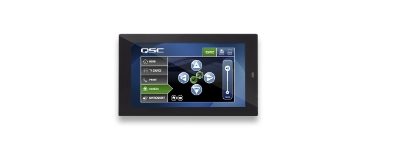

    Q-SYS 5.5” PoE Touch Screen Controller for In-Wall Mounting. Includes 1 LAN Port and Aux Power input, available in black only

    Specifications

    Q-SYS Platform

    touch screen controller

    TSC-55w-G2

    TSC-80w-G2

    TSC-116w-G2

    Q-SYS TSC-G2 Series touch screen

    controllers combine capacitive touch

    technology with a bright, high resolution

    full color LCD for state-of-the-art control

    of a Q-SYS system. Control elements and

    layout for GUIs on this versatile touch screen

    controller are completely customizable to

    provide end users a full range of controls,

    from complete system control and

    monitoring, to one-touch deployments of preprogrammed presets.

    Designers can create custom user control

    interfaces (UCI) within Q-SYS Designer

    Software using the UCI Editor. Drag and drop

    any control Q-SYS element from a Q-SYS

    design schematic into UCI Editor and easily

    deploy your design to the touch screen,

    without any programming experience.

    UCI Editor allows the import of room

    diagrams, corporate logos or other graphical

    elements in most major graphic file formats

    including .png, .jpg, .svf, and .gif. In order

    to deploy UCI designs onto Q-SYS touch

    screens, a software license is required for

    each Q-SYS Core processor.

    TSC-G2 Series touch screen controllers

    are offered in black and designed for easy

    surface mount installation in a wall, lectern

    or similar flat surface. Universal mounting

    accessories are included for standard US and

    European wall and junction boxes for vertical

    or horizontal installations.

    Table top stand accessories are available for

    the TSC-80w-G2 and TSC-116w-G2 models.

    TSC-G2 Series

    Features

    • Capacitive LCD touch surface:

    In-plane switching (IPS) technology

    • High resolution displays

    • Power over Ethernet: IEEE 802.3af

    compliance allows for simplified

    single cable installation

    • Universal mounting options: Included

    accessories for mounting to US

    standard and European wall and

    junction boxes

    • Complete design freedom: Create

    custom branded graphical interfaces

    using Q-SYS UCI Editor within

    Q-SYS Designer Software

    Specification Sheet

    (shown with optional table top stands

    available for TSC-80W-G2 and TSC-116W-G2)

    TSC-55w-G2 TSC-80w-G2 TSC-116w-G2

    Display

    Description Capacitive Touch Surface, In-Plane Switching (IPS) technology, 16M colors.

    Panel Dimensions

    5.85" X 3.44" X 1.33"

    (148.5 mm X 87.5 mm X 33.7 mm)

    8.8" X 5.8" X 1.4"

    (223.5 mm X 148.4 mm X 36.3 mm)

    12.3" X 7.9" X 1.6"

    (313.6 mm X 201.5 mm X 39.85 mm)

    Viewable screen dimensions (diagonal) 5.5" (127 mm) 8.0" (203 mm) 11.6" (295 mm)

    Resolution 1280x720 1280x800 1920x1080

    Brightness 400 Nits 400 Nits 350 Nits

    Panel Orientation Vertical / Horizontal Vertical / Horizontal Vertical / Horizontal

    Power

    Power over Ethernet IEEE PoE 802.3af class 3 via LAN port

    Aux power PSU +24VDC @ 0.5A (power supply not included)

    Aux power connection type Locking terminal Barrel connection Barrel connection

    Weight

    Product weight (net) 6.31 oz (179 g) 17.64 oz (500 g) 32.1 oz (910 g)

    Environment

    Operating temperature 0°-50° C (32°-122° F) 0°-50° C (32°-122° F) 0°-50° C (32°-122° F)

    BTUs 17 typical 23 typical 30 typical

    Humidity 5-85rh non-condensing 5-85rh non-condensing 5-85rh non-condensing

    Enclosure

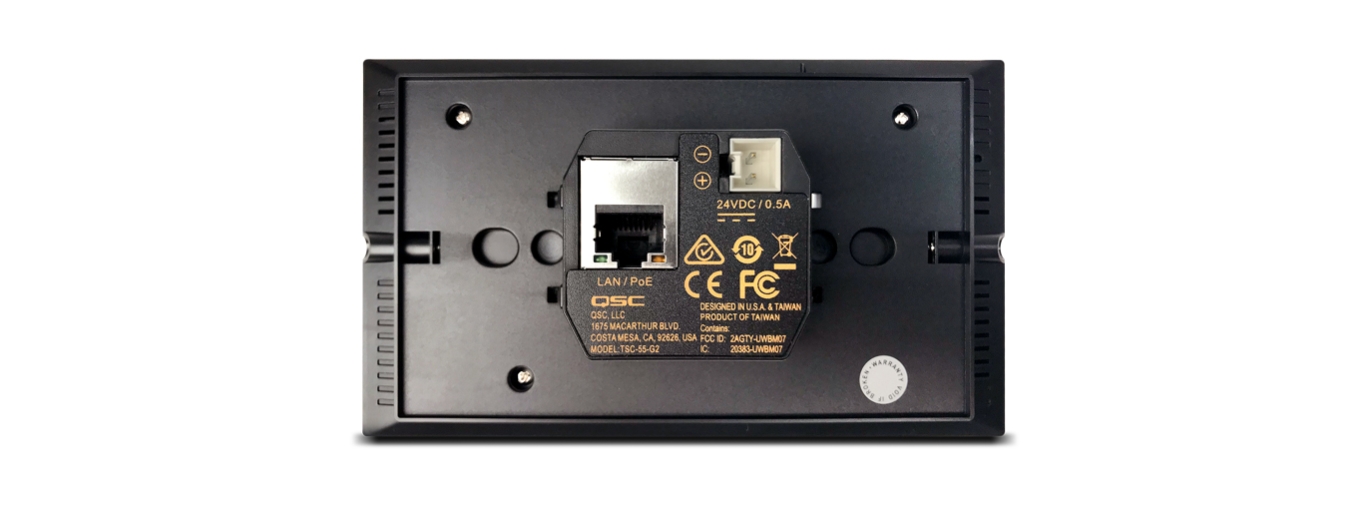

    Rear Panel LAN, 1000Mbps full-duplex RJ-45 LAN, 1000Mbps full-duplex RJ-45 LAN, 1000Mbps full-duplex RJ-45

    Wall Mount Yes Yes Yes

    Table Top No Optional table top stand accessory Optional table top stand accessory

    Specs subject to change without notice

    Q-SYS TSC-G2 Series

    1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: +1.800.854.4079 or +1.714.957.7100 • Fax: +1.714.754.6174

    © 2018 QSC, LLC all rights reserved. QSC, Q-SYS and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries.

    All other trademarks are the property of their respective owners. Patents may apply or be pending.

    Q-SYS TSC-G2 Series Spec Sheet 11/2018 please recycle
