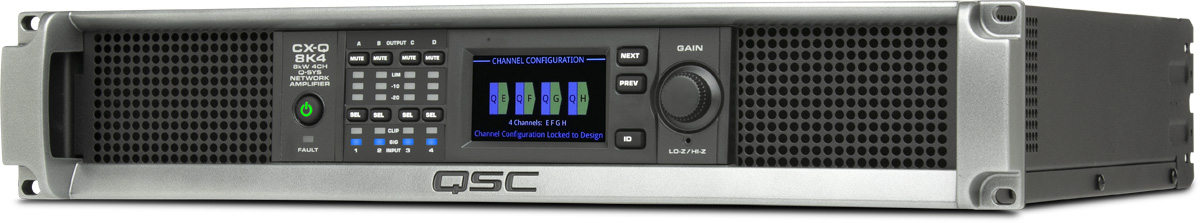

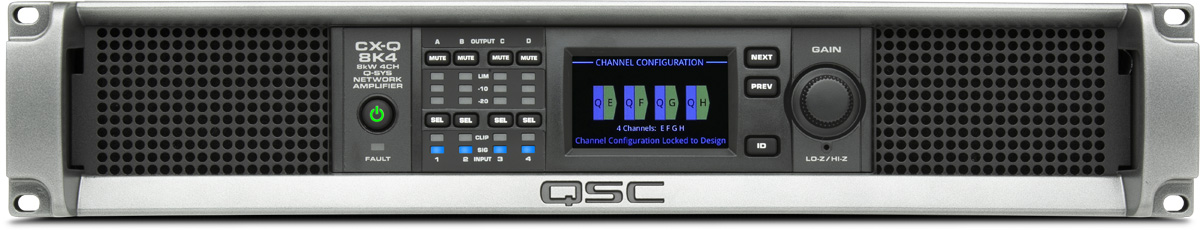

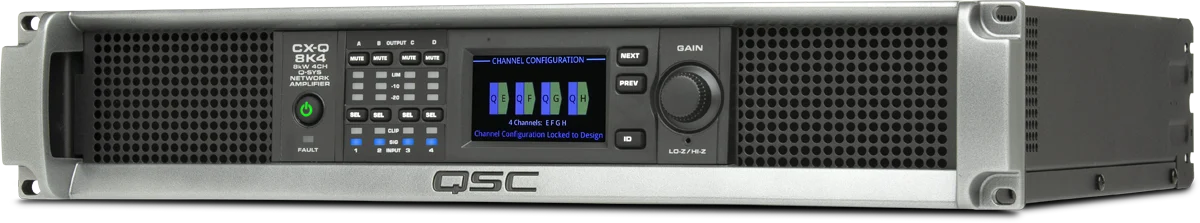

The QSC CX-Q 8K4 is a four-channel network amplifier for the Q-SYS ecosystem, positioned near the top of the CX-Q range with 8000 W of total output across its four channels. It suits large installed-sound applications—auditoriums, arenas, houses of worship, stadiums and multi-zone commercial spaces—where high headroom and centralized Q-SYS management are required.
Key Features
- Four independent channels delivering 8000 W total system power
- Lo-Z, 70V and 100V direct-drive output available on every channel
- Native Q-LAN network transport, control and monitoring

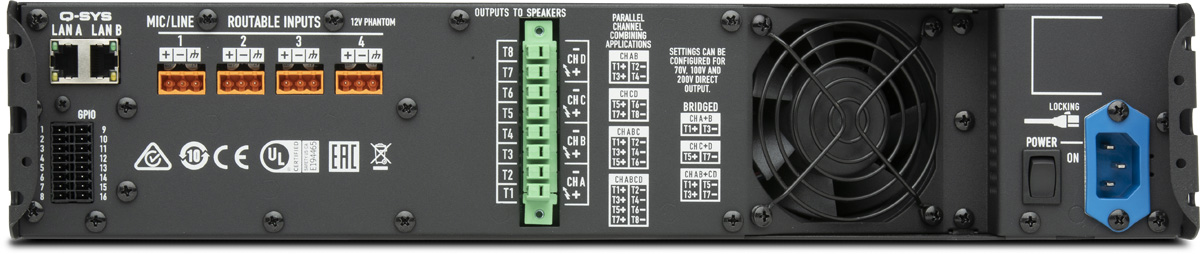

- Four mic/line inputs with +12V phantom power as extra Q-SYS on-ramps
- Eight bidirectional GPIO connections for control and integration
- Class-D hybrid PowerLight amplifier design
- Touch-proof Euroblock loudspeaker connections
As a Q-SYS peripheral the CX-Q 8K4 is designed to work with a Q-SYS Core, where routing, DSP, loudspeaker tuning and diagnostics are handled inside Q-SYS Designer. This lets integrators scale amplification and processing as one managed platform rather than a rack of standalone boxes.
