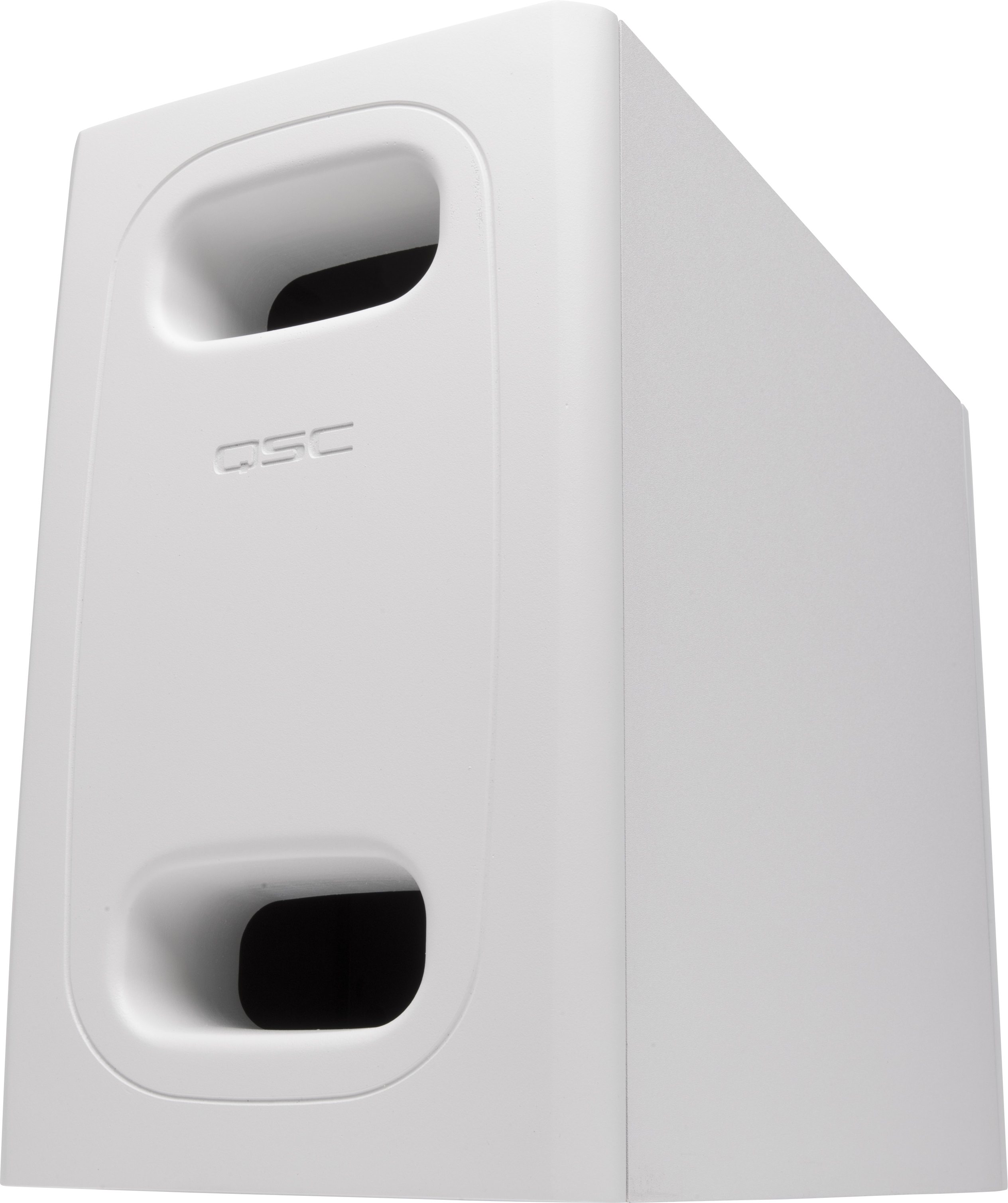

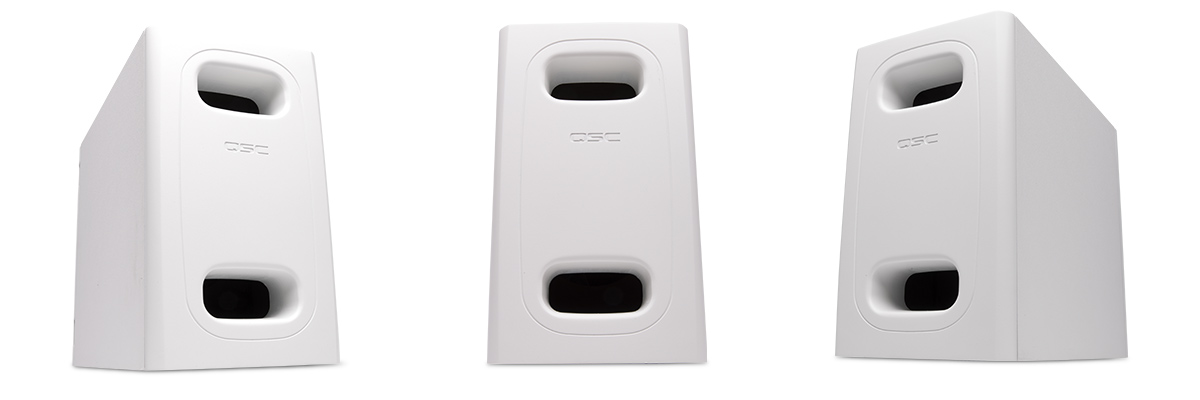

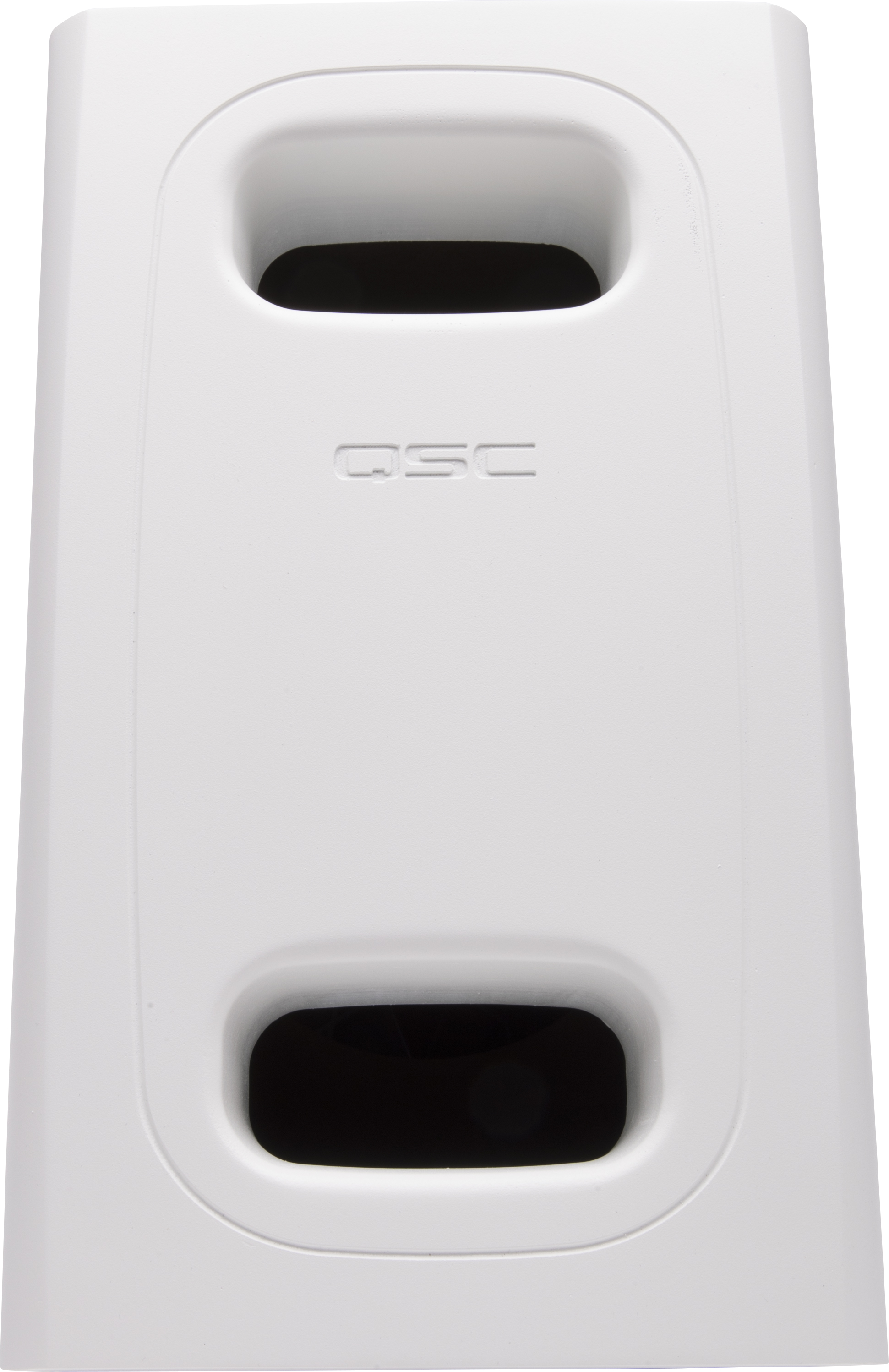

The QSC AD-S.SUB is a compact surface-mount subwoofer from the AcousticDesign Series, built to anchor the low end of a SUB/SAT background-music system in retail, hospitality and small commercial rooms. This WH version has a white finish. It uses a 6.5-inch dual-voice-coil woofer and provides four built-in high-pass-filtered outputs so it can feed and integrate directly with AD-S.SAT satellite speakers, simplifying wiring for a complete small-format system.
Key Features
- 6.5" dual voice coil woofer for improved thermal handling
- 100W rated power; 45-150 Hz output

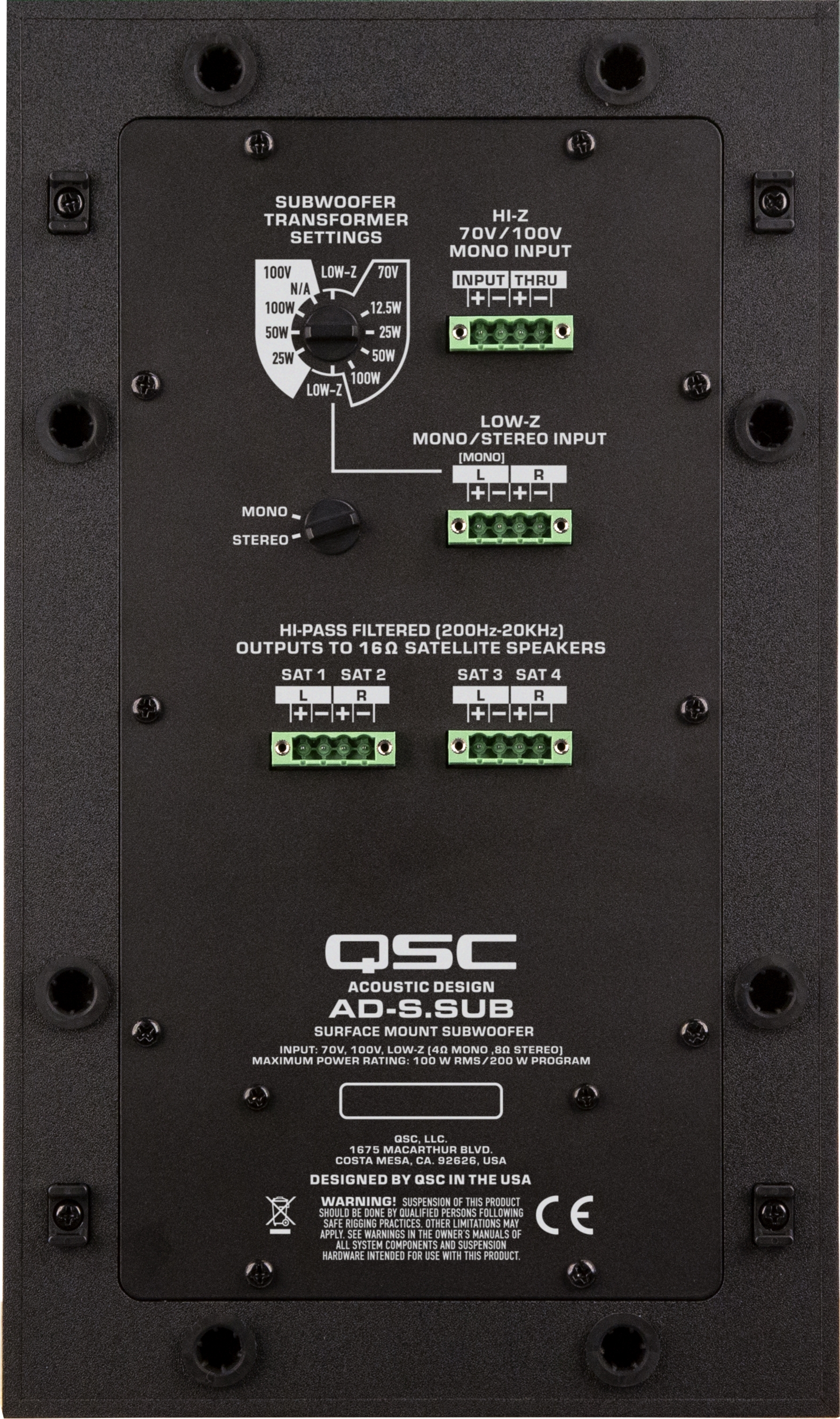

- 70V/100V taps plus 4-ohm mono or 8+8-ohm stereo bypass
- Four high-pass-filtered satellite outputs onboard
- Reversible wall mount and rear panel; locking Euroblock connectors
- Mix-and-match compatible with other AD Series speakers
