The QSC AD-C820S SYSTEM is the square-grille variant of the AcousticDesign AD-C820, a high-output 8-inch coaxial in-ceiling loudspeaker package for high-demand commercial spaces such as large dining rooms, worship venues, atriums and lobbies. The S designation indicates the square grille, giving designers a cleaner architectural look. Sold as a SYSTEM, it bundles the AD-C820 transducer/baffle assembly with the matching back-box enclosure and square grille.
Key Features
- 8" ferrite woofer plus 1.4" neodymium compression driver, coaxially aligned
- 200W continuous handling; 91 dB sensitivity for high output
- 70V/100V taps plus 16-ohm bypass
- 90-degree axisymmetric coverage for even, wide dispersion

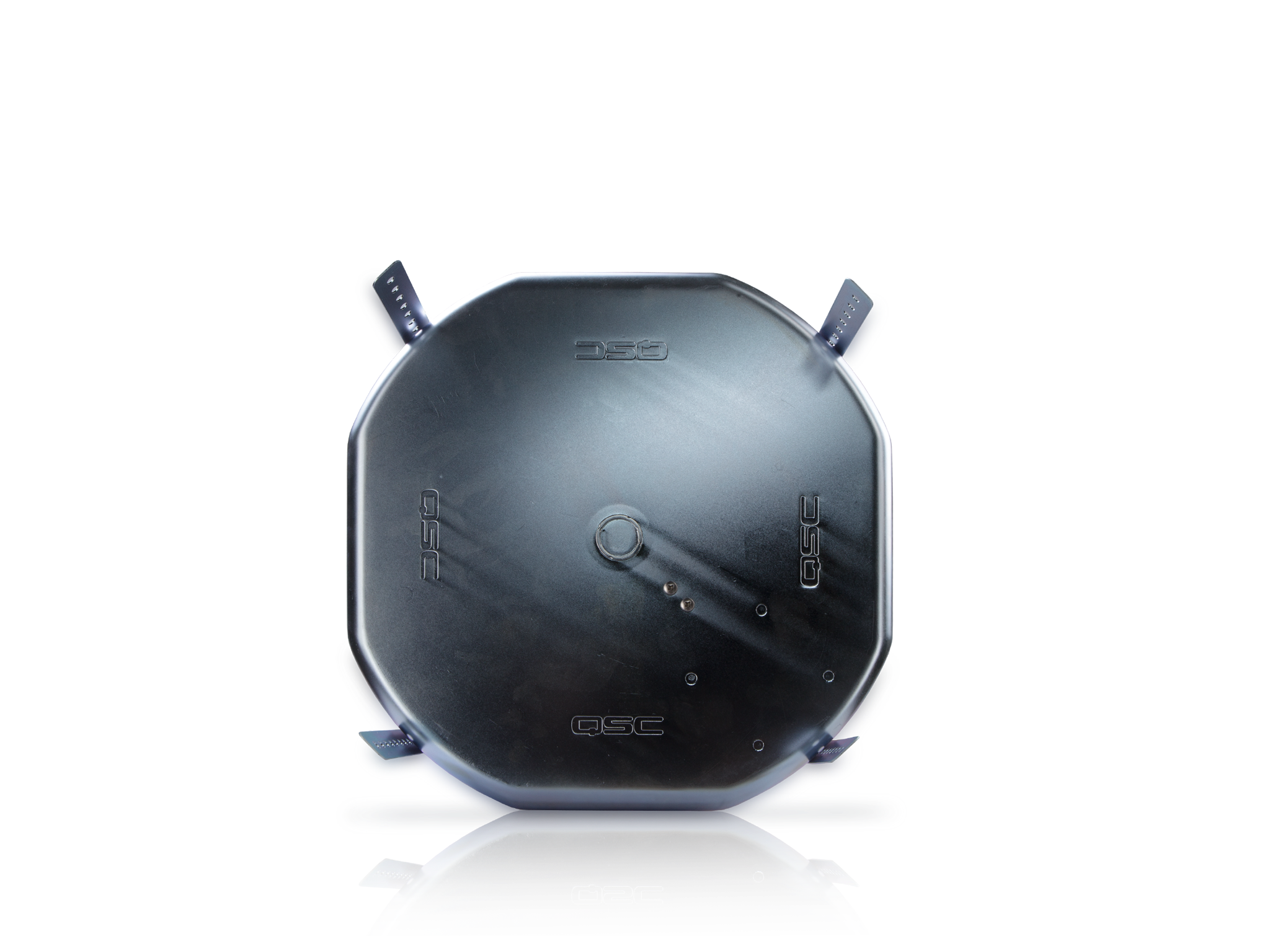

- Square grille (S) version; ships with baffle, back box and grille
- DMT-based voicing, Q-SYS Intrinsic Correction ready
