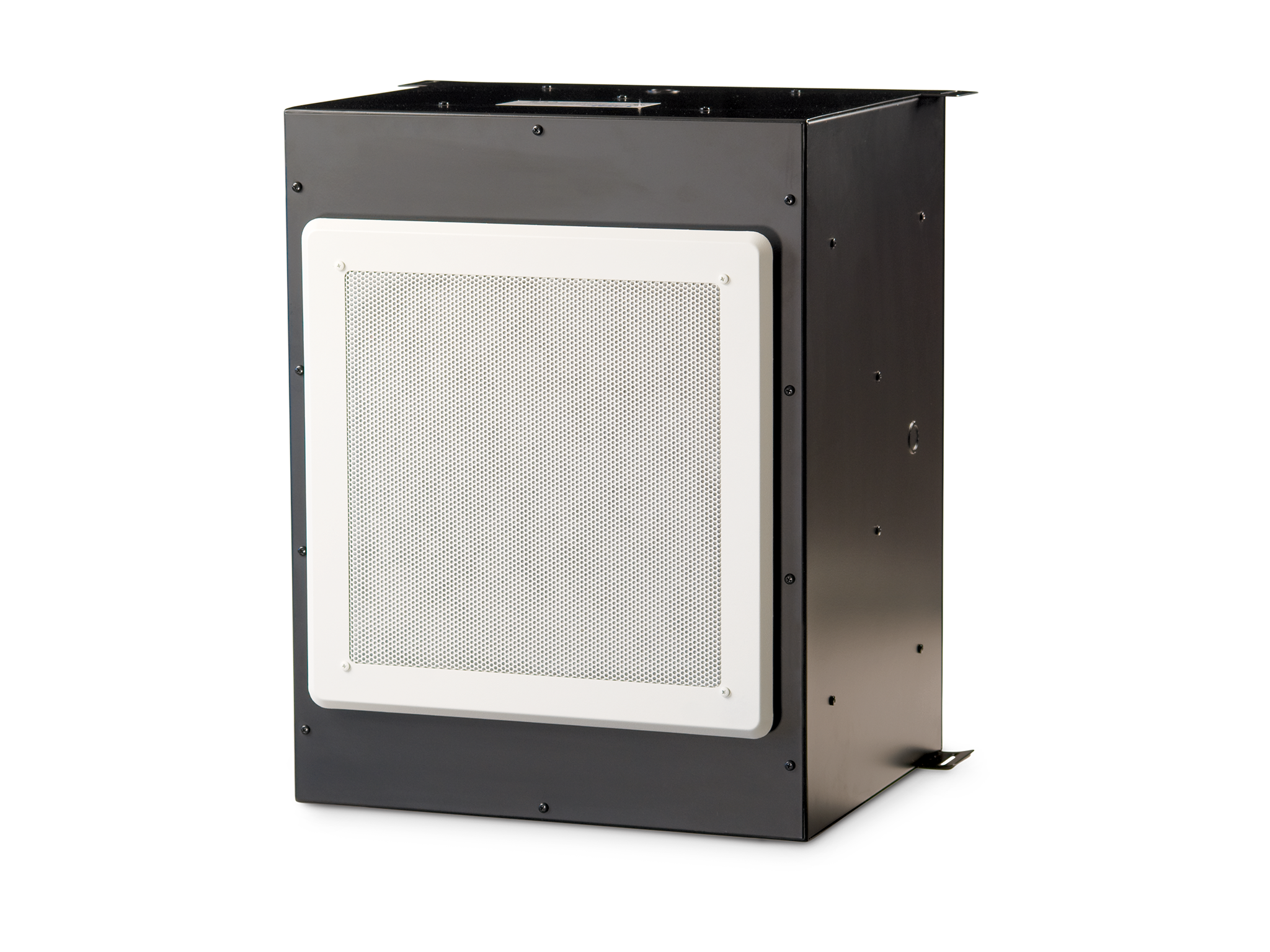

The QSC AD-C1200 is a 12-inch high-output coaxial in-ceiling loudspeaker from the AcousticDesign Series, designed for large, high-SPL venues such as houses of worship, atriums, sports facilities and performance spaces that need full-range sound from the ceiling plane. It combines a 12" woofer and a 1.75" neodymium compression driver on a coaxial axis, and its 70V/100V multi-tap transformer supports distributed lines while a 16-ohm bypass enables low-impedance operation.
Key Features
- 12" ferrite woofer plus 1.75" neodymium compression driver, coaxial
- 300W continuous handling; up to 124 dB peak SPL
- 70V/100V taps (up to 150W) plus 16-ohm bypass
- 85-degree axisymmetric coverage
- Baffle assembly mounts to the AD-C1200BB back box (sold separately)
- DMT voicing, Q-SYS Intrinsic Correction ready
This SKU is the loudspeaker baffle assembly; the back-box enclosure and grille are ordered separately.
