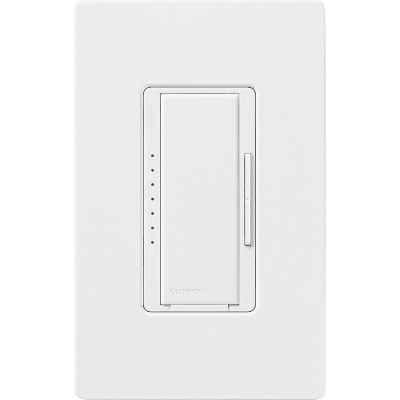

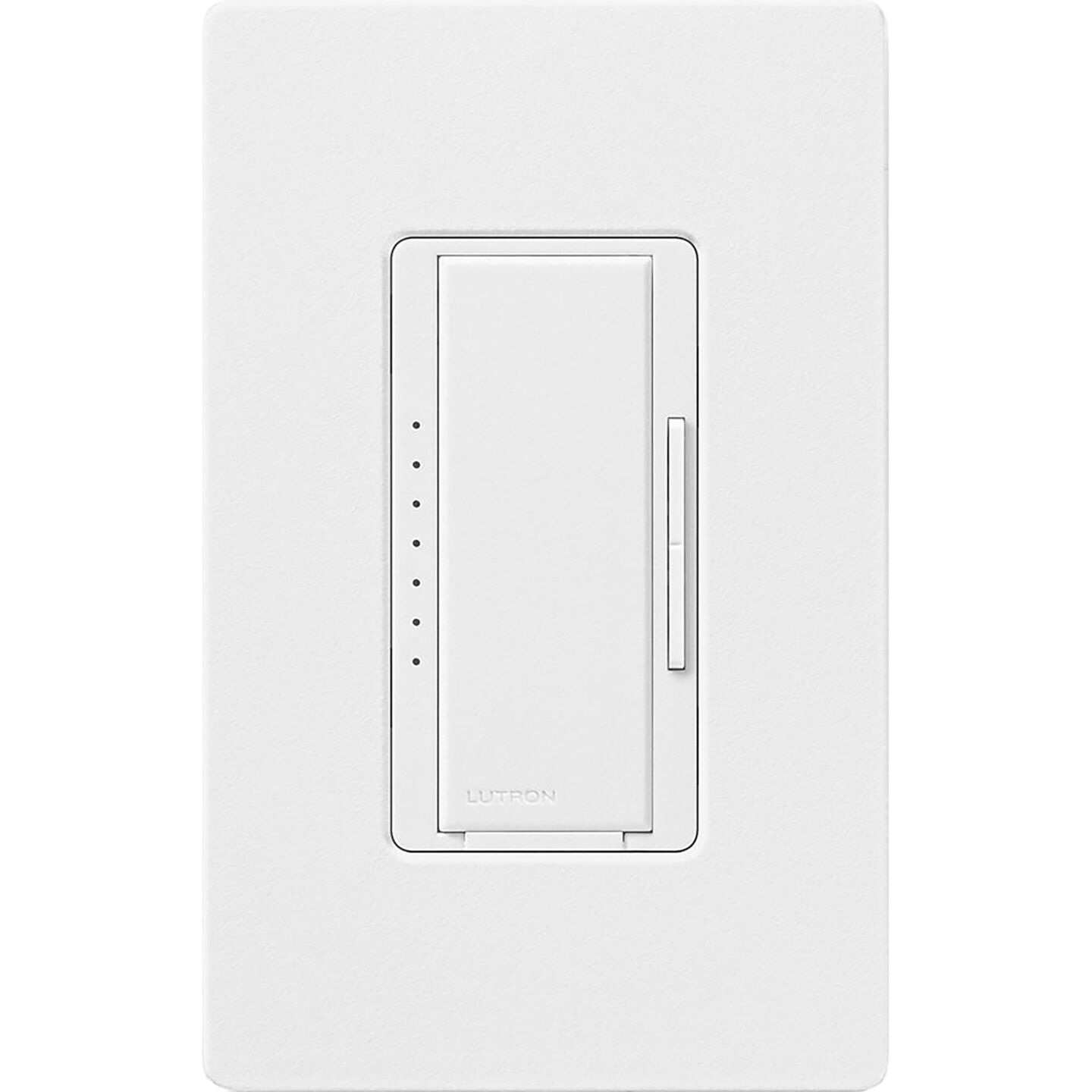

The Lutron MA-PRO-SW Maestro PRO LED+ dimmer is a contractor-friendly tap dimmer designed to handle almost any dimmable load from a single SKU. Its standout feature is selectable phase control: installers can run it in forward phase, reverse phase or an automatic mode that picks the best setting for the connected LEDs, which helps eliminate flicker, buzz and dropout with today's mixed LED lamps and fixtures. It controls up to 250W of dimmable LED or CFL, 500W of incandescent, halogen or electronic low-voltage, or 400VA of magnetic low-voltage, and can also drive Lutron Hi-lume 2-wire LED drivers. A neutral is optional for LED, CFL and incandescent loads, so it works in older homes, while ELV/MLV and driver loads use a neutral. Through Advanced Programming Mode installers can set high-end and low-end trim, fade-on and fade-off rates, a protected preset and indicator light behavior. For 3-way and larger multi-location setups, add up to nine Maestro companion dimmers. Finish: Snow White.
Key Features
- Forward/reverse/auto phase selection
- Wide load range from one model
- Neutral-optional wiring for common LED retrofits
- Tap on to favorite level, double tap for full, press-and-hold to fade off
- Front accessible service switch for safe lamp changes
- Power-failure memory
Ideal Applications
New construction and retrofit homes, kitchens, living spaces, hospitality rooms and light commercial spaces with mixed LED, halogen or low-voltage fixtures.
Compatibility
Multi-location requires MA-R or MSC-AD Maestro companion dimmers (not standard mechanical 3-way switches); up to 9 companions with 150 ft max total companion wire. Ganged installations require derating (e.g. 200W LED end of gang, 150W middle of gang). Check lutron.com/LEDfinder for lamp compatibility. Claro or stainless steel wallplate sold separately.
