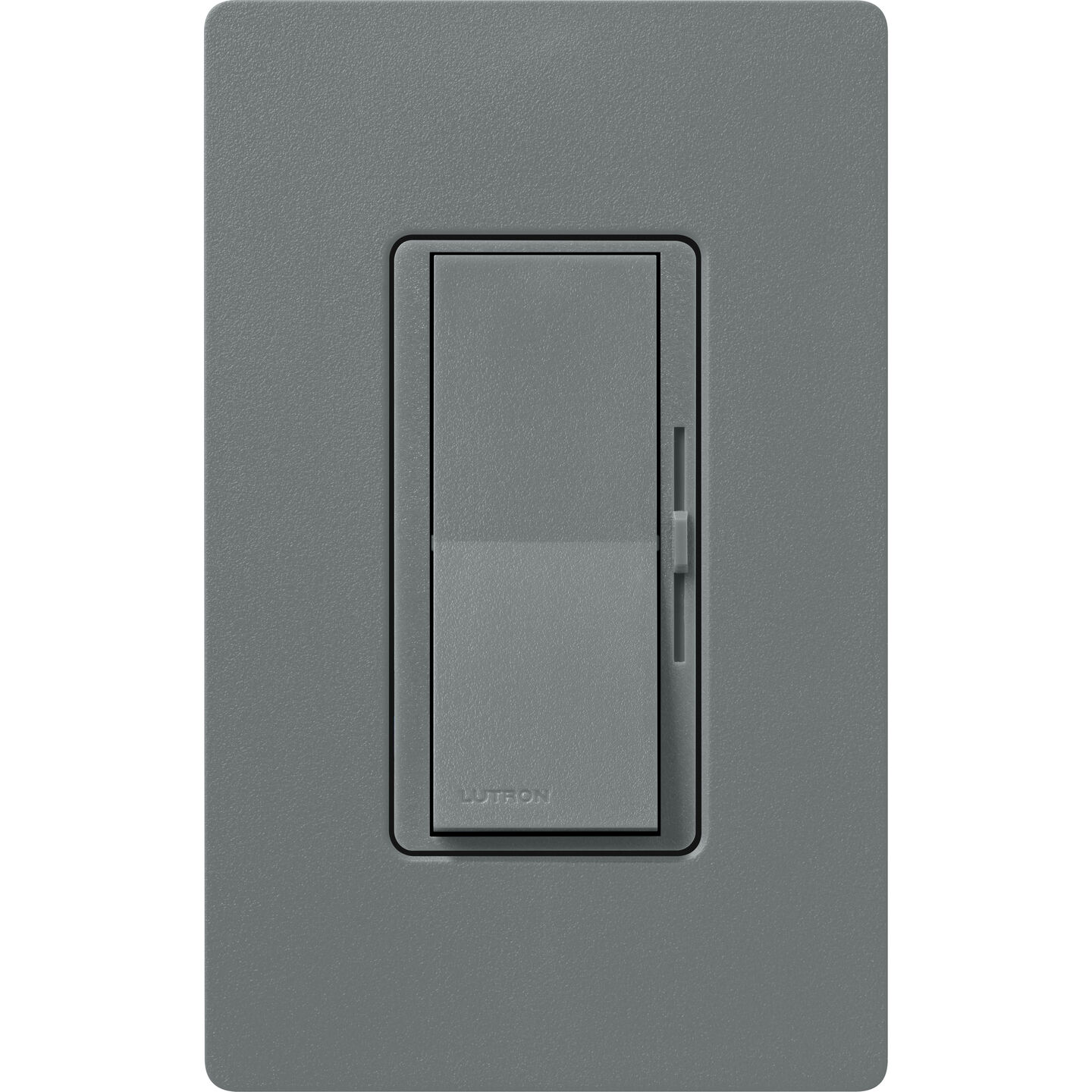

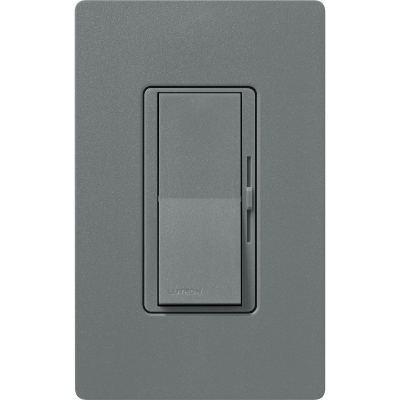

The Lutron DVSCSTV-SL is a Diva 0-10V dimmer in the satin Claro color palette, shown here in Slate. It combines a large Diva paddle for on/off with a captive slider that sets the 0-10V control signal, so it can dim third-party LED fixtures and fluorescent ballasts that accept a 0-10V sinking input.
Unlike low-voltage 0-10V controls, this model switches the line voltage itself: it operates on 120 to 277V and is rated to switch up to 8A, so no separate power pack is needed (and Lutron notes one cannot be used). The Class 1 control link sinks up to 50mA, enough for as many as 25 compliant drivers. High-end and low-end trim are user adjustable to clean up flicker and dead travel, and no derating is required when ganged. For 3-way control, wire it with a Claro or other mechanical switch; only one 0-10V control can be used per 3-way circuit.
Key Features
- 120-277V line-voltage switching, 8A
- 50mA sink, Class 1, up to 25 drivers
- Captive linear slider, large paddle
- High- and low-end trim
- No derating when ganged
Ideal Applications
Offices, classrooms, conference rooms, retail and healthcare spaces with 0-10V LED fixtures, especially on 277V circuits.
Compatibility
Use with 0-10V sinking LED drivers and ballasts (IEC 60929 Annex E.2). Lutron wiring diagrams show a neutral connection; confirm wiring per the installation instructions. Satin Claro wallplate sold separately.
