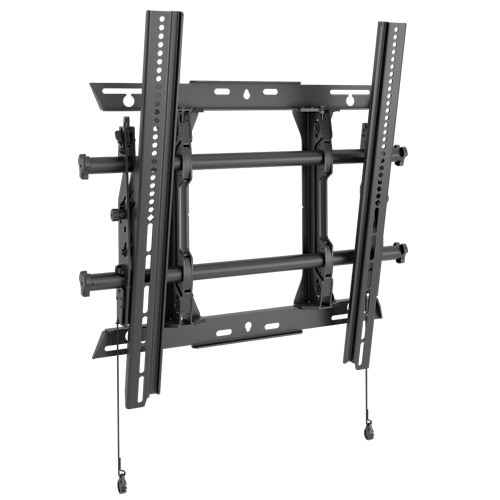

The Chief MTMP1U is a Fusion micro-adjustable tilt mount built specifically for displays installed in portrait orientation. Tall screens are common in wayfinding, menu boards and retail signage, and this mount is designed around that layout. It supports typical 43 to 47 in screens up to 6 in thick, VESA patterns from 100 x 100 mm to 571 x 600 mm and a 200 lb (90.7 kg) rating. Tilt of +5 to -12 degrees, 10.4 in (26.4 cm) of lateral shift, 1 in of height adjustment and ControlZone leveling help place every screen precisely. Centris tilt and ClickConnect latching speed installation. It fits 16 in (406 mm) studs or a single stud; with single stud mounting, capacity drops to 125 lbs (56.7 kg). UL Listed and OSHPD approved.
Key Features
- Designed for portrait displays
- 200 lbs (90.7 kg) capacity
- +5 / -12 degree tilt
- ControlZone micro-adjust
- UL Listed, OSHPD
Ideal Applications
Wayfinding, menu boards, retail and hospitality signage, and lobby displays installed in portrait orientation.
Compatibility
Universal VESA 100 x 100 mm to 571 x 600 mm, typical 43 - 47 in displays, portrait. 16 in studs or single stud (125 lb limit on single stud).
