• Up to 64x64 AVB Streams of digital audio networking with Biamp AVB devices
  • Up to 128 x 128 channels of digital audio networking with Biamp AVB devices
  • 32 x 32 channels of digital audio networking via the Dante protocol
  • AES67-enabled Dante endpoint
  • 2 mic/line level inputs, 2 mic/line level outputs
  • Five 1 Gigabit Ethernet Ports
  • Four ports support PoE+ power (IEEE 802.3.at Class 4, 30W)
  • Up to 2x2 channels of configurable USB audio
  • 8 AEC channels assignable to any input
  • 4-pin GPIO
  • Surface mountable with included bracket
  • Supports port authentication via IEEE 802.1X
  • SIP VoIP interface via Gigabit Ethernet connection
  • CE marked, UL listed, and RoHS compliant
  • Covered by Biamp Systems’ 5-year warranty
Price: $5,750.00
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: TesiraFORTÉ X 800

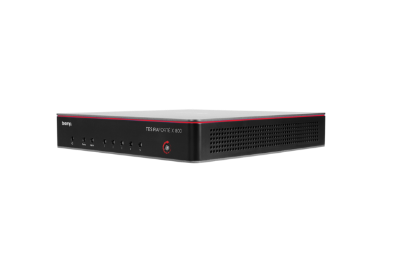

    Description

    TesiraFORTÉ X 800 is a meeting room DSP featuring multiple network and analog audio connection points, with 8 channels of Acoustic Echo Cancellation (AEC) assignable across any digital or analog input. Five 1-Gigabit Ethernet ports are provided, four of which are PoE+ powered, and which support media and control traffic of various types including AVB, Dante and VoIP.

    Specifications

    • Depth: 8.11 in
    • Height: 1.47 in
    • Number of Channels: up to 2
    • Sample Rate: 48kHz
    • Width: 8.11 in
    • Altitude: 0-6,600 feet (0–2000 Meters) MSL
    • Humidity: 0–98%, non-condensing
    • Input Impedance (Balanced): 8kohm
    • Maximum Input: +24dBu
    • Output Impedance (Balanced): 207ohm
    • Product Weight: 1.54 lbs
    • Active Power: 30 Watt
    • Ambient Operating Temperature Range: 32-104° F (0–40° C)
    • AC Voltage (Minimum): 100 Volts
    • AC Voltage (Maximum): 240 Volts
    • EIN (no weighting, 22Hz to 22kHz): < -125dBu
    • USB Bit Depth: 24-bit
    • Frequency Response 20Hz to 20kHz, +4dBu output: +0.25 dB/-0.5 dB
    • ROHS Compliant - Yes
