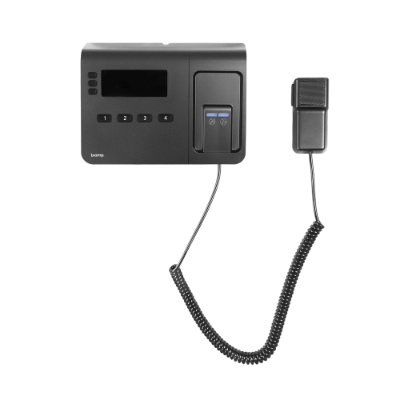

The NPX H1040 is a 4-button convenience paging station with handheld microphone for use in Qt X and Tesira systems. The H1040 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante. The NPX H1040 can store four user-configurable page codes and up to 10 prerecorded messages. Additionally, the H1040 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX H1040 meets convenience paging requirements for facilities of all sizes.
Network Connection: Gigabit Ethernet, RJ-45
(Cat 5e and above)
Frequency Response (150Hz - 16kHz): ± 3dB
SNR (1kHz, 94dBSPL A-Weighted): > 76dB
Maximum SPL (THD+N < 1%): 109dB
Dynamic Range (THD+N < 1%): 92dB, A-Weighted
Mic Type: MEMS
Mic Pattern: Cardioid
Power: PoE+ (IEEE 802.3at Class 3, 15.4W)
Overall Dimensions (excl. microphone):
Height (incl. foot): 1.9 inches (47 mm)
Width: 9.1 inches (230 mm)
Depth (incl. foot): 7.2 inches (182 mm)
Weight: 2.4 lbs (1080 g)
Mic Gooseneck Length: 13.3 inches (338 mm)
Environmental:
Ambient Operating
Temperature Range: 32 - 104° F (0 - 40° C)
Humidity: 0-95% relative humidity (non-condensing)
Altitude: 0-10,000 ft (0-3000m) MSL
