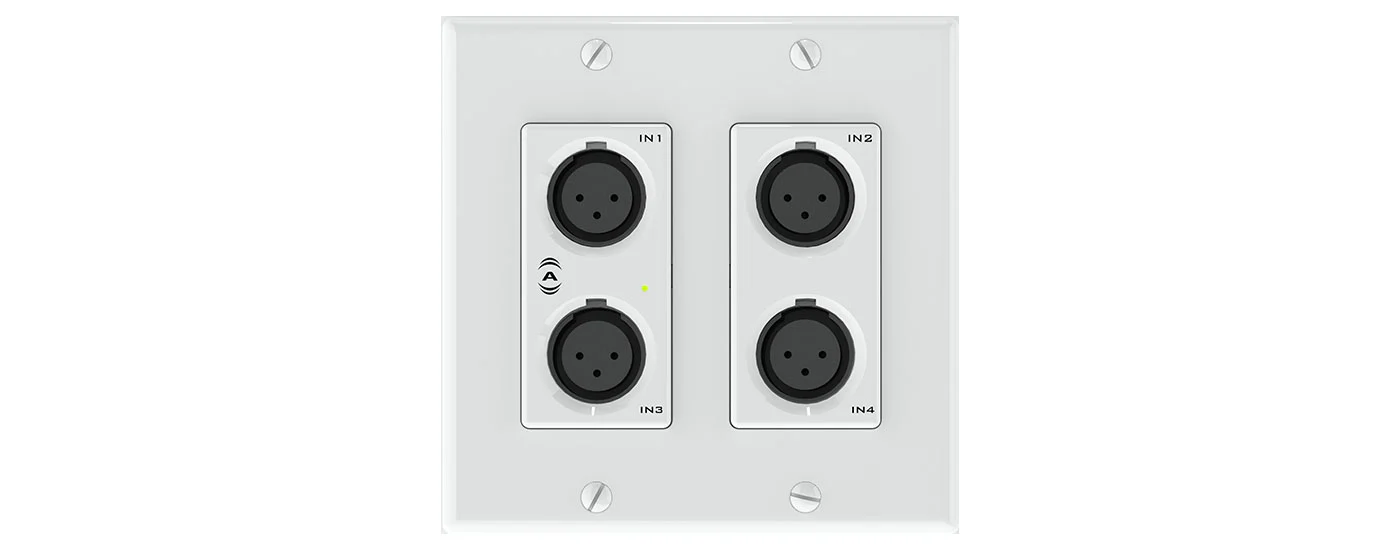

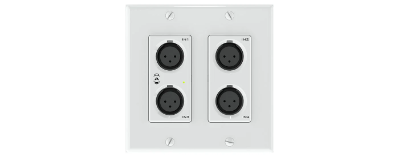

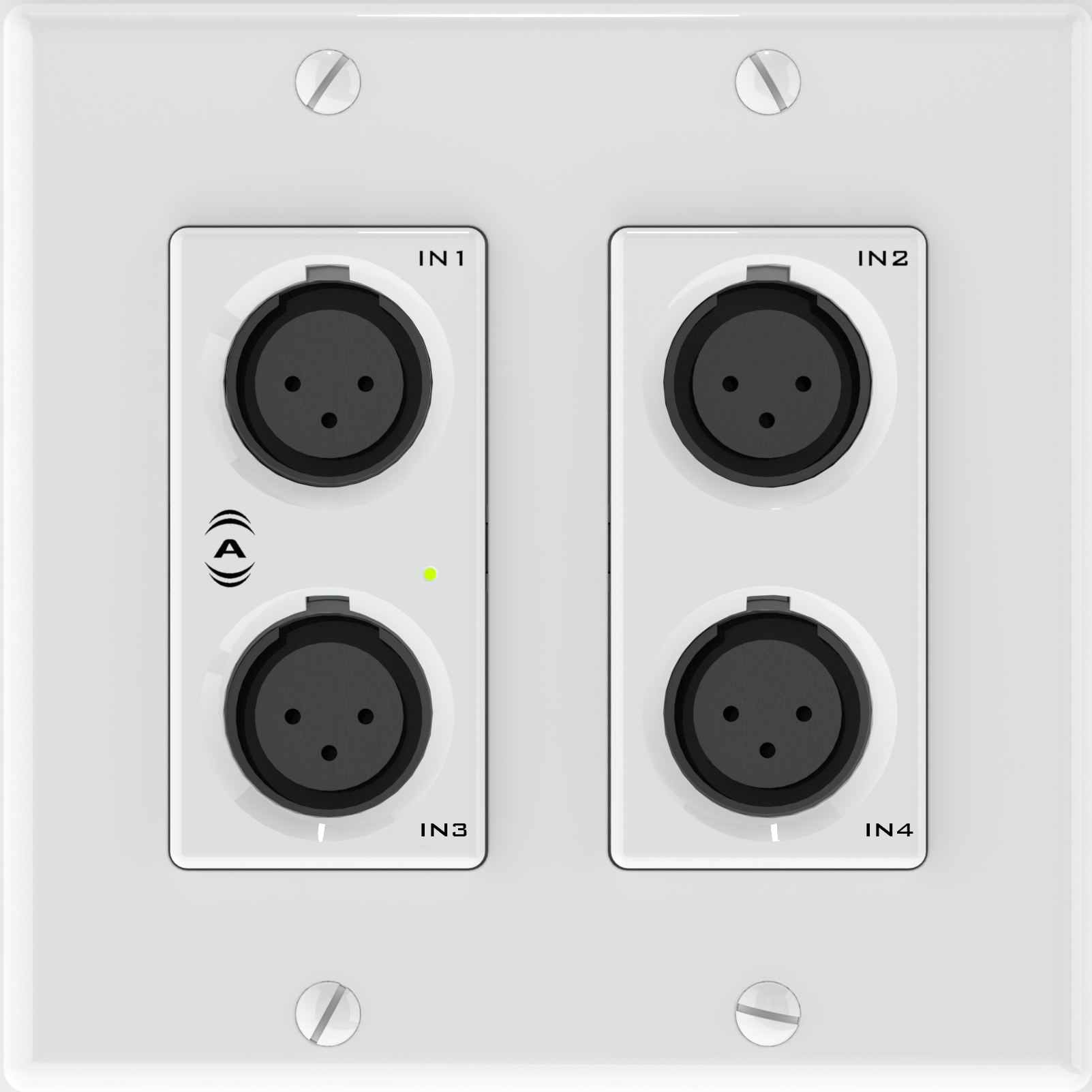

The QSC unDX4I (Attero Tech) is a Dante/AES67 network audio wall plate that brings four balanced XLR mic/line inputs to a dual-gang US junction box. It is a clean way to add multiple microphone or line sources to a networked system such as Q-SYS at the wall, using only a single CAT-5 cable for power and data.
Key Features
- Four balanced XLR mic/line inputs
- Two balanced line outputs on a Phoenix connector
- Software-selectable input gain and +48 V phantom power
- Automatic output muting when the Dante signal is lost
- PoE powered; Dante Domain Manager compatible
The unDX4I supports 44.1/48 kHz sample rates and fits a standard dual-gang box, making it a tidy input point for lecterns, meeting rooms and conference spaces without local power or long analog runs.
