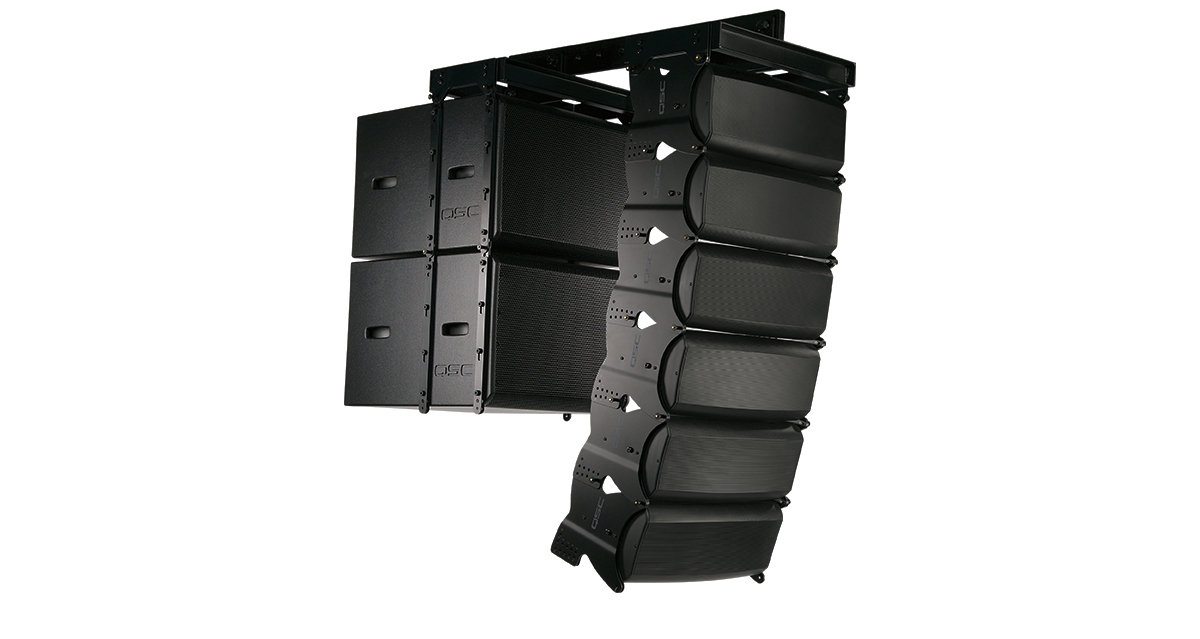

QSC WL2082-i-BK

There are no reviews yet. | Write a review

Features

  • Installation-optimized design brings affordable and uncompromised line array performance to a broader range of venues
  • Compact and attractive appearance, available in black and white, harmonizes with any installation environment
  • Wide 140° horizontal coverage
  • Economical and easy-to-install suspension system with ample array adjustability
Price: CALL
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: WL2082-i-BK

    Description

    Installation line array - dual neodymium 8" cone LF, dual titanium diaphragm, neodymium magnet compression driver HF, selectable bi-amp/tri-amp operation, 140° horizontal coverage, integral array hardware, available in black.

    Specifications

    SPECIFICATIONSWL2082-i
    Configuration2½ way, biamp or triamp
    Transducers
    High Frequency


    Low Frequency
    Dual 50 W 8Ω 1-inch exit, 1.75-inch titanium diaphragm, neodymium magnet assembly
    Dual 200 W 16Ω 8-inch woofers, 2-inch voice coils, neodymium magnet assemblies, weather resistant cone
    Frequency Response (±3 dB)80 Hz - 20 kHz
    Frequency Range (-10 dB)68 Hz - 22 kHz
    Nominal ImpedanceHF: 16Ω
    LF biamp mode: 8Ω
    LF triamp mode: 16Ω (×2)
    SensitivityHF: 106 dB
    LF: 97 dB
    (4 V @ 1 m)
    Continuous Power Capacity 1


    		HF: 100 W
    LF biamp mode: 400 W
    LF triamp mode: 200 W (×2)
    Recommended PowerHF: 200 W
    LF biamp mode: 800 W
    LF triamp mode: 400 W (×2)
    Maximum Output (dB SPL at 1 m)
    Continuous / Peak
    HF: 126 dB / 132 dB
    LF: 122 dB / 128 dB
    Nominal CoverageHorizontal 140 degrees
    Vertical: dependent on number of elements used
    Cabinet TypePorted, elliptical / trapezoidal
    Enclosure MaterialHIPS (high impact polystyrene) with UV protectant
    FinishAvailable in black (WL2082-i BLK) or white (WL2082-i WHT) paintable
    GrillePerforated, formed aluminum
    Connectors2 x NL-8 in parallel
    Pin Outs
    PinsBi-ampTri-amp
    1+/1-NCNC
    2+/2-NCLF2
    3+/3-LFLF1
    4+/4-HFHF
    Attachment PointsIntegral, side plate adjustable rigging system, vertical splay adjustable in 1° increments from 0° - 10°
    Dimensions (HWD) inches11.8 x 27 x 13.4
    Dimensions (HWD) mm300 x 686 x 340
    Weight37 lb / 16.8 kg net
    45 lb / 20.45 kg shipping
    Accessories AvailableFB2082-i: Fly-bar for WL2082-i, WL118-sw and WL115-sw. Available in black or white.

    EB2082-i: Extension bar, allows WL118-sw or WL115-sw to be suspended behind WL2082-i. Available in black or white.

    PB2082-i: Pullback bar for WL2082-i. Pulls the bottom of the array back to achieve the desired angle. Available in black or white.

    AB2082-i: Angle bracket, allows greater vertical splay between WL2082-i and WL118-sw or WL115-sw enclosures in ground stacked configurations. Available in black. Requires two brackets per array, sold individually.

    QRP-KIT-1: Kit of four quick-release pins for use in lieu of included bolts.
