PTZ-IP Conferencing Cameras

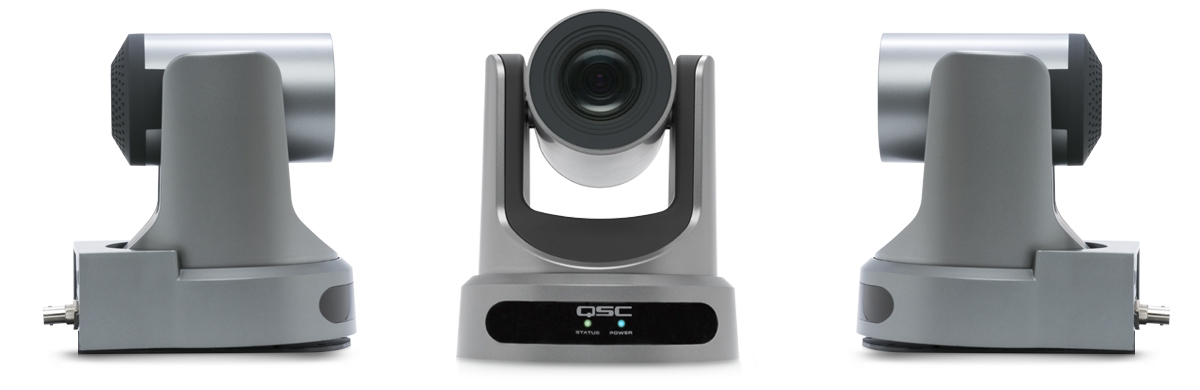

Q-SYS PTZ 12x72
Q-SYS PTZ 20x60
Q-SYS PTZ 12x72
Q-SYS PTZ 20x60
Features
• Professional quality video
conferencing for the Q-SYS
AV-to-USB Bridging Solution
• Distribute video via the Q-LAN
network anywhere it is needed
• HDMI resolutions up to 1080p60
• Image rotation controls to allow
for inverted mounting using
optional ceiling bracket
• Motorized Pan, Tilt and Zoom
(PTZ) provides complete room
coverage and privacy
• Auto exposure, auto focus and
auto white balance modes
• Native custom camera interfaces
through Q-SYS Designer
Software
• Includes wall mount bracket for
simple installation
The PTZ 12x72 / PTZ 20x60 cameras integrate with the Q-SYSTM Platform and Q-SYS
bridging peripherals like the Q-SYS I/O-USB Bridge or Q-SYS Touch Screen Dialer &
Controller to deliver professional quality conference video feeds alongside industry leading
audio processing for small, medium and large sized meeting rooms for utilizing soft-codec
conferencing or computer-based capture.
Benefits
• Networked PC Integration: The camera's network distribution allows every PC,
at the table or in the rack, to simultaneously access and control the Q-SYS audio and
camera video streams using the AV-to-USB Bridging built into the I/O-USB Bridges.
• Flexible: Simultaneous IP Streaming, HDMI and 3G-SDI outputs providing
designers tremendous flexibility when including in enterprise system designs.
• Enterprise Management: Can be controlled and managed through Q-SYS
Designer, and Q-SYS User Controlled Interfaces (UCI).
• Real Time Feedback: View the camera's video while controlling the camera
on Q-SYS UCIs
• Scalable: Users can select as many streams from as many PTZ-IP Cameras
as necessary for their designs
Key Features
• PTZ 20x60: 20x optical zoom, 60° horizontal Field of View (FoV)
• PTZ 12x72: 12x optical zoom, 72° horizontal Field of View (FoV)
• Low Noise CMOS Image Sensor, S/N Ratio ≥ 55dB
• Simultaneous IP Streaming, HDMI and 3G-SDI outputs
• Power over Ethernet (PoE, 802.3af) or local 12v power supply
• Multiple resolutions: provides for a greater range of connectivity
resolutions for different application and network environments
• Optimized for quiet operation
• Fully compatible with all existing and future Q-SYS Core processors
• Covered by QSC Systems 3-year warranty
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 please recycle
© 2017 QSC, LLC all rights reserved. QSC, Q-SYS and the QSC logo and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and
Trademark office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
Q-SYS IP PTZ 12x72 IP PTZ 20x60 Spec Sheet 05/24/2017
IP-PTZ Conferencing Cameras - Details
Specifications
System Details
Image Sensor 1/2.7", Low Noise CMOS Image Sensor
Lens characteristics (wide to tele)
PTZ 12x72
PTZ 20x60
12x optical zoom, f=3.5mm to 42.3mm, F1.8 to F2.8;
Horizontal Field of View: 72.5° to 6.9°, Vertical Field of View: 44.8° to 3.9°
20x optical zoom, f=4.42mm to 88.5mm, F1.8 to F2.8;
Horizontal Field of View: 60.7° to 3.36°, Vertical Field of View: 34.1° to 1.89°
Minimal Illumination 0.5 lux at F1.8 (AGC On)
Noise Reduction 2D and 3D
S/N Ratio ≥ 55dB
Pan / Tilt Angle and Speed Pan: ±170° rotation, speed: 1.7° to 100°/sec,
Tilt: -30° to +90° rotation, speed: 1.7° to 69.9°/s
Ceiling Mountable Image rotation for ceiling mounting, ceiling mount bracket accessory available
HD Video Outputs HDMI and 3G-SDI
Ethernet 100BaseTX / 1000BaseT
Video Resolutions HDMI / SDI:
1080p 60/50/30/25
1080i 60/50
720p 60/50/30/25
Network (30fps, 16:9):
1080p, 720p, 576p
360p, 270p, 180p
Input Voltage DC 12V or PoE (802.3af)
Current Consumption 12v DC @ 1.0A (max)
Operating Temperature -10°C - 40°C (14°F - 104°F), Indoor use only
Storage Temperature -40°C - 60°C (-40°F - 140°F)
Power Consumption 12W (max)
Dimensions 7.5 in x 5.6 in x 6.5 in (169mm x 142mm x 164mm)
Weight 3.0 lbs (1.35 kg)
I/O-USB Bridge not included
PTZ-CMB1 Ceiling Mounting Bracket
