QSC MP-MFC-BK

There are no reviews yet. | Write a review
  • Configure as much or as little control as needed
  • For use with the MP-M paging and music mixer/processor only
  • Control zone source selection, zone output level, input level selection and scene recall
  • Crisp 27 mm x 26mm monochrome graphic display and three buttons (increment, decrement, select)
  • Ability to daisy chain up to four MP-MFC controllers
  • Up to 250 m cable length (CAT5)
  • Up to eight MP-MFC controllers per MP-M Series mixer
  • Available in black or white
  • Available in NA and EU sizes
  • Three buttons (increment, decrement, select
    Price: $328.00
      Quantity:
      Availability: In Stock
      Usually ships In 24 - 48 hours

      Item #: MP-MFC-BK

      Description

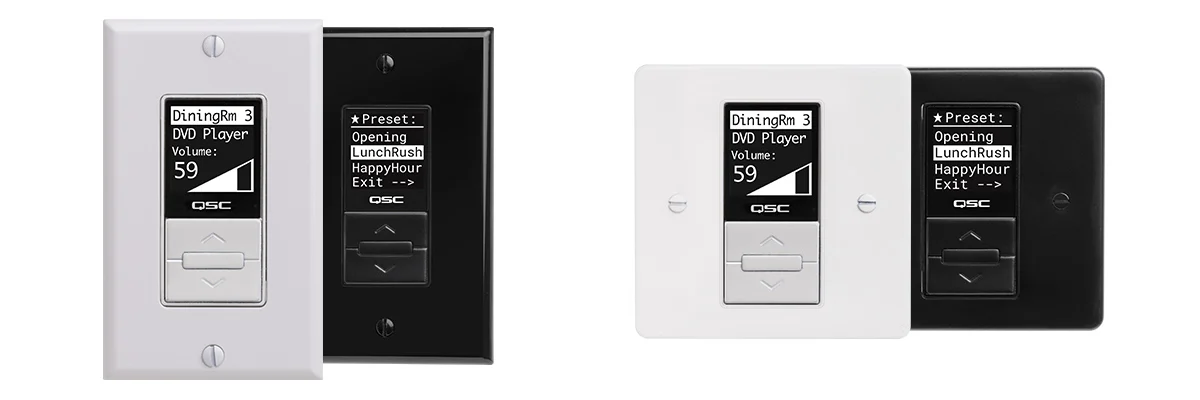

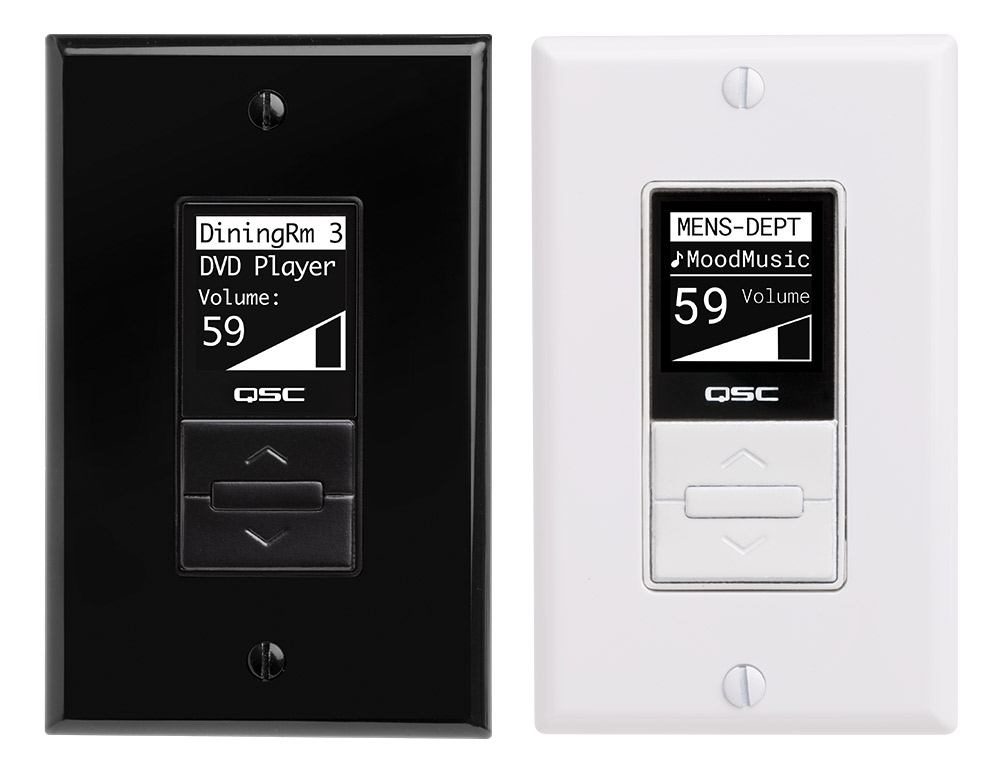

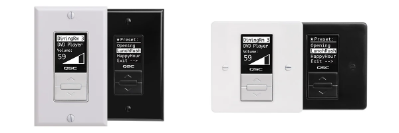

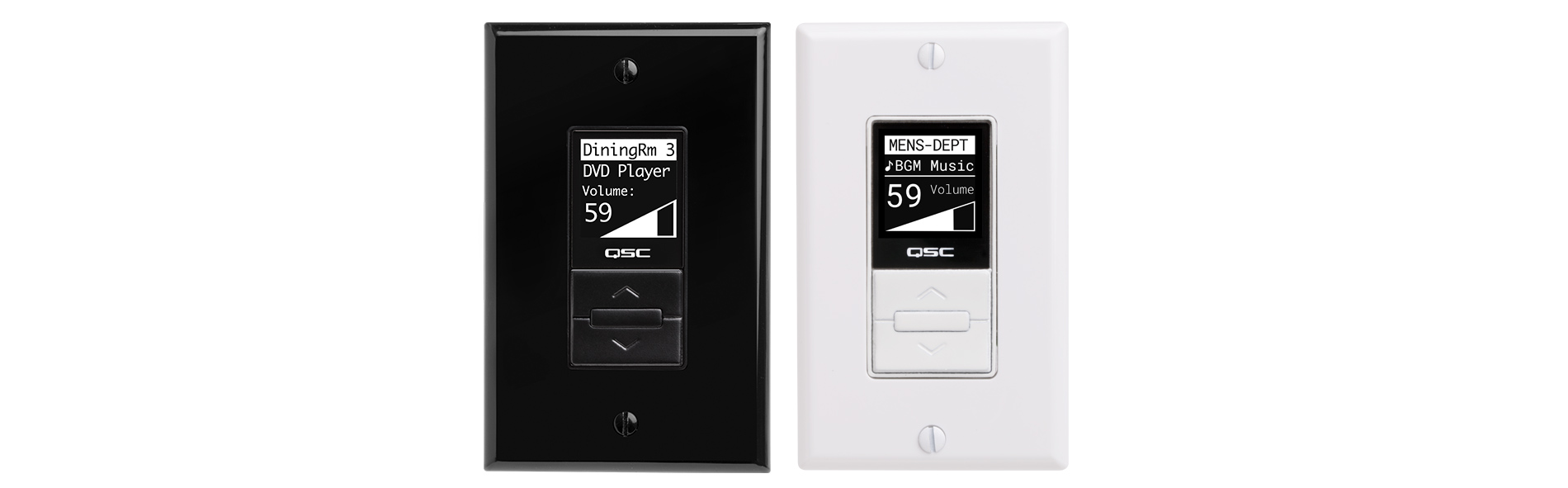

      Decora® style multi-function controller for use with MP-M zone mixers, provides zone Volume and Source Select as well as Preset Recall capability. Available in two styles for North American (NA) and European (EU) wall boxes.

      Specifications

      Controls3 x Buttons (Increment, Decrement, and Select)
      Connectors2 x RJ45
      Display128 x 128 Pixels
      Viewing Area (L x W): 1.1 x 1" / 27 x 26 mm
      Maximum Connectable DevicesPer MFC Port: Daisy-Chain up to 4 MP-MFC Controllers
      Maximum Cable Length: 820.2' / 250 m
      Total: Up to 8 Controllers per MP-M Series Mixer
      DesignerUse MP Install to Customize the Available Control Options per MP-MFC Controller
      Dimensions (H x W x D)4.5 x 2.8 x 1.4" / 114.3 x 69.9 x 35.6 mm
      Weight0.2 lb / 100 g
