Features

  • Power levels matched to the most popular speakers used by entertainers
  • Optimized for maximum real-world headroom into 4- and 8-ohm speaker systems
  • Inputs: XLR, 1/4-inch TRS and phono input connectors for compatibility with any source
  • Outputs: Speakon® combo accepts 1/4-inch (TS) plugs or Speakon 2- and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems
  • Minimum depth chassis (10.1-inch / 257 mm) fits in compact, inexpensive effects racks
  • Lightweight - GX3 and GX5 less than 26 lb (12.5 kg). GX7 only 15.5 lb (7 kg)*
  • Detented gain controls for precise setting and matching of sensitivity
  • GuardRail™ automatically protects the amplifier and loudspeakers from damage due to temperature rise or overdrive without shutting down the show
  • Front panel LEDs monitor power, signal, and clipping
  • Subwoofer/satellite crossover built-in
Retail: $943.00
Price: $747.00
You Save: $196.00 (20.8%)
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: GX7

    Description

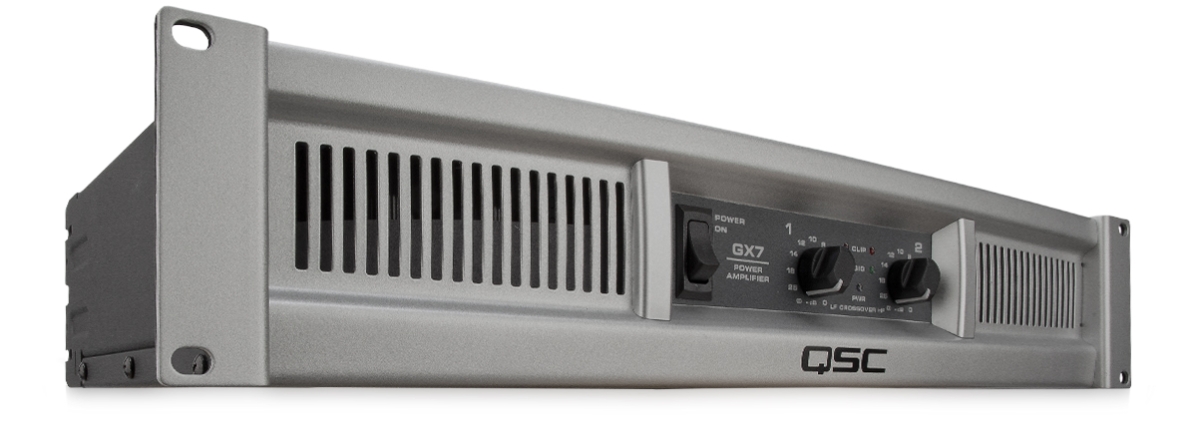

    Lightweight, professional power amplifier, 2 channels, 725 watts/ch at 8Ω, 1000 watts/ch at 4Ω


    Power levels matched to the most popular speakers. Inputs: XLR, 1/4" TRS and phono. Outputs: Speakon® combo and binding posts.

    Specifications

    Features

    • Power levels matched to the most popular

    speakers used by entertainers

    • Optimized for maximum real-world

    headroom into 4Ω and 8Ω speaker systems

    • Inputs: XLR, 1/4" TRS and phono input

    connectors for compatibility with any source

    • Outputs: Speakon® combo accepts, 1/4"

    (TS) plugs or Speakon 2-pole and 4-pole

    plugs (connects 2 poles only). Binding posts

    support all other speaker wiring systems

    • Minimum depth chassis (10.1"/257 mm)

    fits in compact, inexpensive effects racks

    • Lightweight – GX3 and GX5 less than 26 lbs

    (12.5 kg). GX7 only 15.5 lbs (7 kg)*

    • Detented gain controls for precise setting

    and matching of sensitivity

    • GuardRail™ automatically protects the

    amplifier and loudspeakers from damage

    due to temperature rise or overdrive without

    shutting down the show

    • Front panel LEDs monitor Power, Signal

    and Clipping

    • Subwoofer/Satellite crossover built-in

    * 230V 16.5 lbs (7.5 kg)

    GX Series amplifiers are ideal for professional entertainers who require maximum performance

    and portability on a limited budget. The hallmarks of the QSC brand – professional audio quality,

    meticulous engineering, precision manufacturing and long-term reliability - are all intrinsic to GX. Add

    contemporary styling, multiple input/output options, light weight, and advanced protection circuitry,

    and the GX Series clearly represents real value – something everyone can use.

    GX amplifiers deliver just the right amount of power to the most popular speakers used by

    entertainers. Typically, loudspeaker manufacturers recommend an amplifier with power output equal

    to the speaker’s “Program (Music) Power” rating or two times (2 x) the “Continuous (RMS)

    Power” rating.

    The GX3 is ideal for speakers in the 300 watt (Program) range, while the GX5 provides full

    performance for 500 watt (Program) speakers. The GX7 outputs 725 watts into an 8 ohm load.

    Owners of popular 4 ohm loudspeakers (such as dual-woofer, two-way models) will find the 700

    watt (4 ohm) power of the GX5 an ideal match while the GX7 1000 watts will very capably power

    many of today’s popular subwoofers or two typical 8 ohm speakers per channel.

    Technical Notes

    The GX3 uses the latest evolution of the QSC Grounded Collector output system, for optimum

    cooling of the critical power transistors. A true Class B biasing system combines maximum thermal

    efficiency with excellent audio performance.

    The GX5 uses a Class H system, based on key elements of the PL Series, (PLX, PL3, CX, DCA)

    almost doubling power in the same size and weight. QSC design expertise allows the output

    devices to shift from low-power to high-power rails in less than a millionth of a second, ensuring

    that the output power is always right where it needs to be without excess loss.

    Both amplifiers use premium toroidal power transformers for reliable "mid-weight" performance.

    A variable-speed fan moves air crosswise through the amplifier, drawing cool air in over the power

    transformer, through the fan, and then over the heat sink. This keeps the transformer cool and

    allows a full size heat sink to fit in a down-sized chassis.

    The GX7 adds the road-proven PowerLight supply to the Class H output section, for more overall

    output power and additional weight savings. The result is one of the highest power-to-weight ratios

    in the industry. A low-noise variable-speed fan with rear-to-front airflow keeps amplifiers and

    racks cool.

    As always, GX Series amplifiers are fully protected from the usual hazards of the trade, ensuring

    stable performance and long life.

    GuardRail™

    GuardRail protection delivers full peak power while preventing detrimental overloads. During excessive

    clipping, or extreme overheating, GuardRail reduces gain just enough to preserve the integrity of the

    music, protect the speakers and keep the audience excited, without unprofessional distortion levels

    or shutdowns.

    Subwoofer/Satellite Crossover

    A subwoofer reduces strain on the full-range speaker, allowing it to play louder, or letting a smaller

    speaker do the same job. The GX Series supports this mode with a Crossover switch that splits the

    full-range input entering Ch 1, sending 20 Hz -100 Hz to the sub (Ch 1) and 100 Hz - 20 kHz to the

    top box (Ch 2). The front panel gain controls balance the sub and top box, while GuardRail optimizes

    peak power into the sub and top individually, for greater musical impact and dynamic range. GuardRail

    optimizes peak power into the sub and top individually, for greater musical impact and dynamic range.

    Choose the right GX amp for your speakers

    Model

    GX3 For 8Ω speakers: 250 W – 350 W (program)a

    GX5 For 8Ω speakers: 400 W – 600 W (program)b

    GX7 For 8Ω speakers: 650 W – 800 W (program)c

    GX Series

    Professional Power Amplifiers

    GX3 | GX5 | GX7

    a) For 4Ω speakers: 350 W – 500 W (program)

    b) For 4Ω speakers: 550 W – 900 W (program)

    c) For 4Ω speakers: 900 W – 1250 W (program)

    GX Series Preliminary Specifications

    qscaudio.com

    All specifications are subject to change without notice.

    1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174

    GX Spec Sheet 04/05/11

    ©2011 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and

    other countries. GuardRail is a trademark of QSC Audio Products, LLC. Speakon is a trademark of Neutrik. All other trademarks are the property of their respective owners. US

    patent pending. Other patents may apply.

    GX3 GX5 GX7 GX7 (230V Only)

    Stereo Mode - Watts per channel

    8Ω / both channels driven / 1 kHz*

    8Ω / single channel driven / 1 kHz*

    4Ω / both channels driven / 1 kHz*

    4Ω / single channel driven / 1 kHz*

    300 W

    350 W

    425 W

    500 W

    500 W

    600 W

    700 W

    850 W

    725 W

    800 W

    1000 W

    1200 W

    Distortion (typical)

    1 kHz: 1 dB below rated power 8Ω: less than 0.02% / 4Ω: less than 0.05%

    Signal to Noise (20 Hz – 20 kHz) 100 dB

    Input Sensitivity 1.2 Vrms

    Voltage Gain (8Ω) 32.2 dB 34.4 dB 36.1 dB

    Output Circuitry Class B 2-tier Class H 2-tier Class H

    Power Requirements (1/8 power, pink noise at 4Ω, 120 V) 6.3 A 6 A 10.1 A

    Frequency Response 20 Hz – 20 kHz, +0, 1 dB

    Dynamic Headroom (4Ω) 2 dB

    Damping Factor 100

    Input Impedance (Ω) Greater than 20k (balanced)

    Maximum Input Level +24 dB (16 Vrms)

    Input Connectors (each channel) 3-pin XLR and 1/4" TRS, balanced, parallel

    Phono, unbalanced

    Output Connectors (each channel) Speakon®, 1/4", Binding Posts

    Amplifier and Load Protection Short circuit, open circuit, thermal, RF protection

    Load protected against DC faults

    Front Panel Controls and Indicators Gain controls, 21 detents

    Red Clip LEDs, proportional, 0.1% THD threshold

    Green Signal LEDs, threshold -35 dB

    Blue Power LED, AC on

    Rear Panel Controls Full Range /Crossover switch

    100 Hz, 3rd order LP (sub), 2nd order HP (top)

    Dimensions (HWD) 3.5" (2 RU) x 19" x 10.1" (89 mm x 483 mm x 257 mm)

    Weight - Net 27 lb (12.1 kg) 28 lb (12.6 kg) 15.5 lbs (7 kg) 16.5 lbs (7.5 kg)

    Weight - Shipping 31 lb (14.1 kg) 32 lb (14.6 kg) 20.5 (9.3 kg) 21.5 (9.75 kg)

    Agency Approvals UL, CE, RoHS/WEEE compliant

    * At onset of clipping

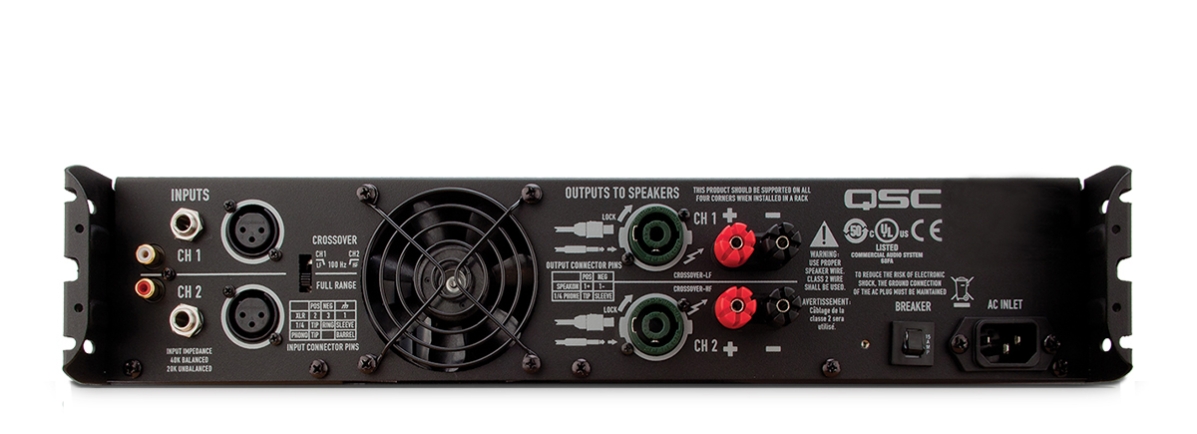

    Inputs

    XLR, 1/4" TRS and phono input connectors

    for compatibility with any source

    Crossover

    Subwoofer/Satellite crossover built-in Speakon® combo output connector

    accepts 1/4" or Speakon 2 wire connectors

    Binding post output for compatibility

    with any loudspeaker wiring scheme

    Outputs to Speakers
