Price: $368.00
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: AD-S.SAT-WH

    Description

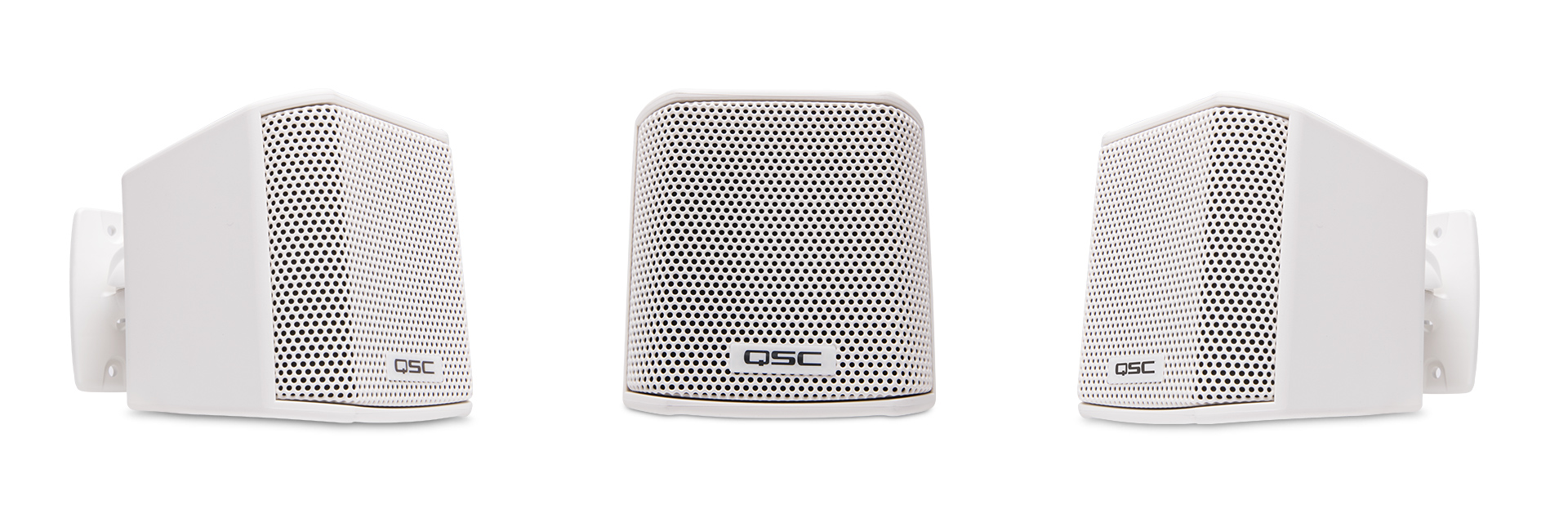

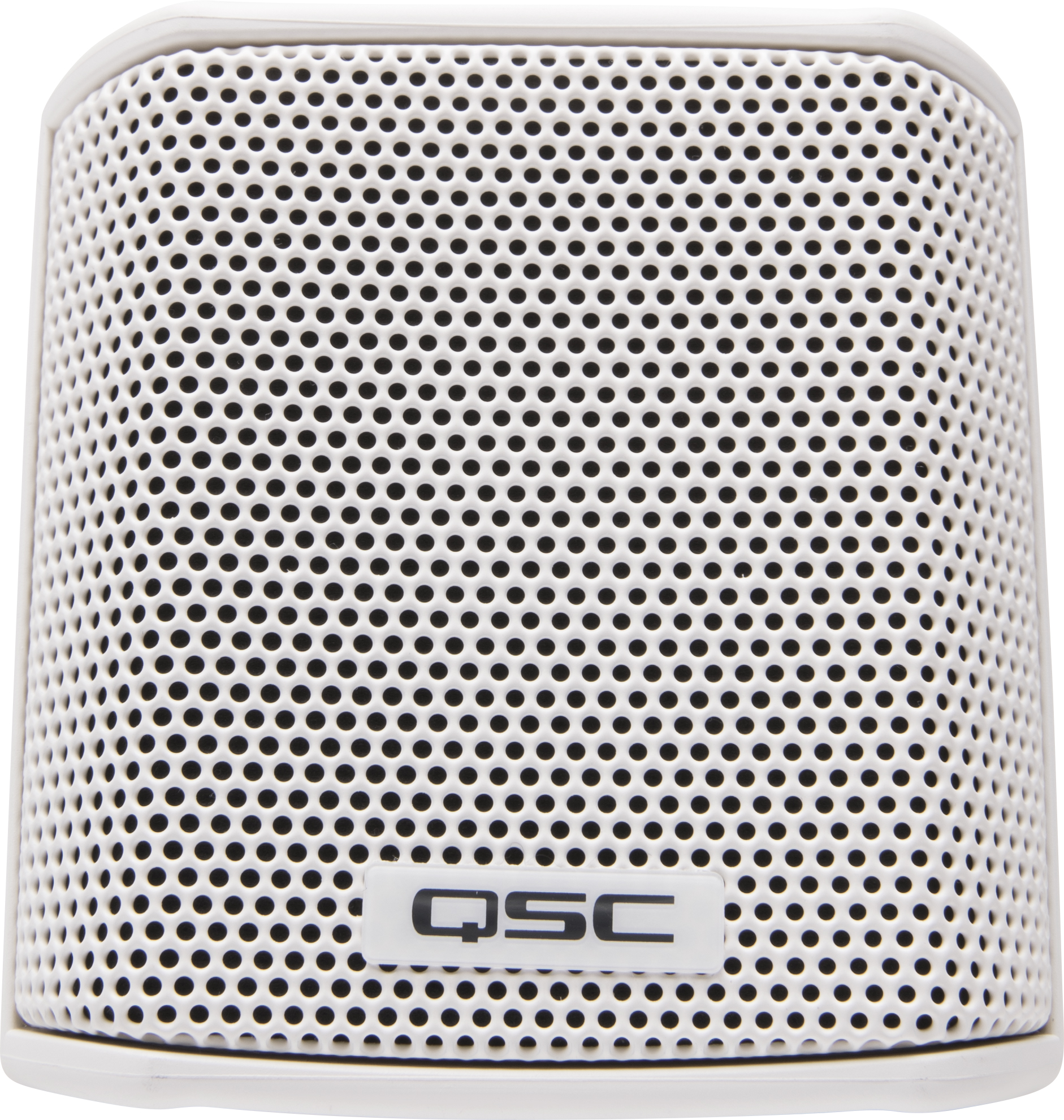

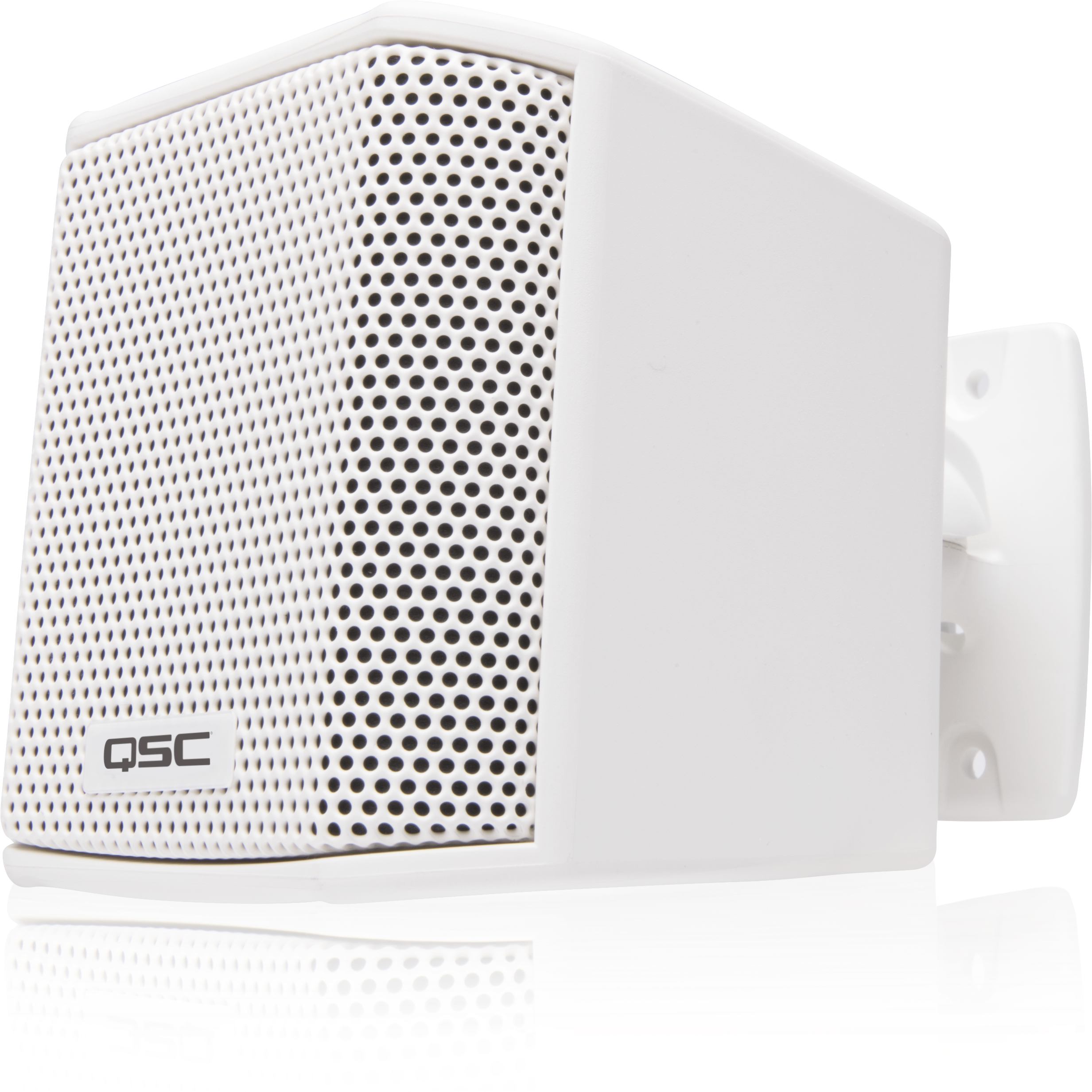

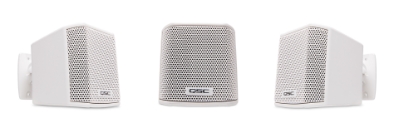

    2.75" Satellite surface speaker, 16Ω, 150° conical coverage, includes mounting bracket for surface installation. Available in white. Priced individually but must be purchased in pairs.

    Specifications

    2.75-inch small format satellite

    surface loudspeaker

    Background Music Applications ∙ Retail ∙ Restaurants ∙ Coffee

    Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces

    AcousticDesign™ Series

    AD-S.SAT

    Features

    • Consistent tonal characteristics

    across the entire AcousticDesign

    Series for surface, ceiling, and

    pendant applications

    • Refined depth and clarity even at

    low volume settings

    • Mix-and-match capable, any

    subwoofer with any satellite in the

    AD Series SUB/SAT line

    • Inverted aluminum dome dust cap

    • Rated at 16 Ω

    • Locking 2-pole Euroblock

    connectors

    • Removable logo

    • X-Mount™ Mini mounting

    hardware provides repeatable

    angles without drift or sag

    • Intrinsic Correction™ voicings

    available via MP-M Series mixers

    and the Q-SYS Platform, including

    CXD-Q Series amplifiers

    • Available in black (RAL 9011) or

    white (RAL 9010)

    • Complete EASE, CF2, CAD, &

    BIM information available online

    The QSC AD-S.SAT is part of the

    AcousticDesign™ Series SUB/SAT

    loudspeaker line which are ideally suited for

    background music applications that require

    refined depth and clarity even at lower

    volume settings.

    The AcousticDesign Series offers integrators

    a premium quality installed sound solution

    where performance, consistent coverage,

    and aesthetics are paramount. Specifically

    designed to maintain a consistent tonal

    characteristic across the entire family in

    ceiling, surface, and pendant enclosures,

    the AcousticDesign Series allows integrators

    seamless transitions within blended

    installations.

    The AcousticDesign Series SUB/SAT

    loudspeakers have been specifically

    designed to be mix-and-match capable.

    Any combination of satellites may be paired

    with any subwoofer in the SUB/SAT line.

    The AD-S.SAT features a high quality

    2.75-inch weather treated paper cone

    woofer with an inverted aluminum dust cap

    for extended high frequency presence within

    a sealed enclosure.

    These loudspeakers are rated at 16 Ω, and

    up to four satellites may be connected to

    any AcousticDesign Series SUB/SAT

    subwoofer's high-pass filtered outputs.

    Satellites also may be used as stand-alone

    loudspeakers using an external high-pass

    filter.

    The input is located on the rear of the

    loudspeaker and uses a locking 2-pole

    Euroblock style connectors capable of

    12AWG (2 mm) wire thickness.

    To retain their stylish aesthetics, the rugged

    ABS baffle is further protected by using UV

    inhibitors that prevent discoloration. The

    grille features a stick-on logo that can be

    removed blemish-free for installations where

    branding is not permitted.

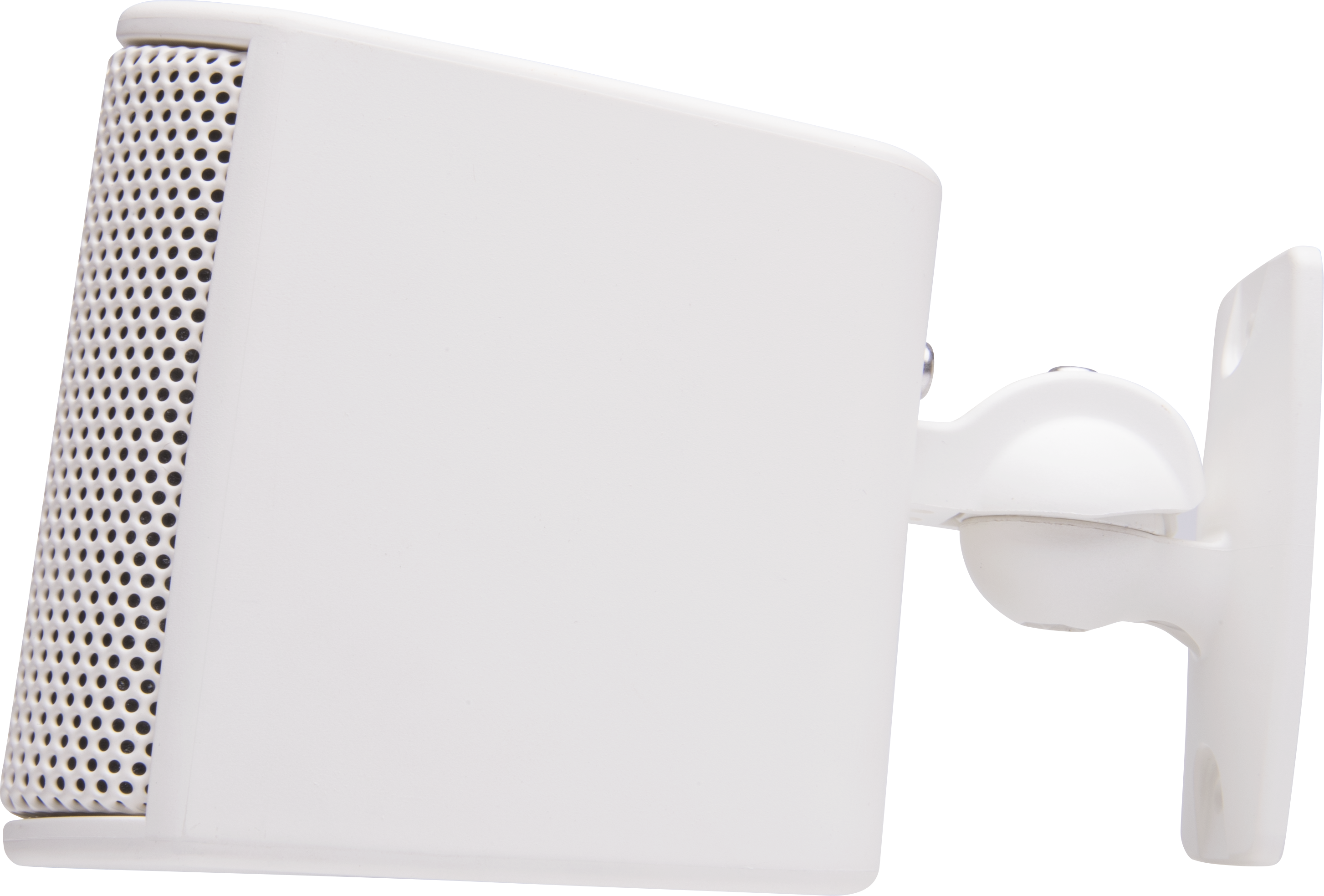

    Installers will appreciate X-Mount™ Mini

    hardware that ships with the satellites. This

    mounting solution allows for repeatable

    angles without drift or sag over time. The

    mount may be rotated on all four 90° axes

    for versatile wall or ceiling mounting options.

    Intrinsic Correction™ voicings that optimize

    performance and speed the install process

    are easily deployed via the MP-M Series

    music and paging mixers as well as

    Q-SYS Platform, including CXD-Q Series

    amplifiers, as part of a complete QSC

    systems solution.

    The AD-S.SAT is available in QSC standard

    black (RAL 9011) or white (RAL 9010).

    For your system integration needs,

    complete EASE, CF2, CAD, and BIM files

    will be available for download at QSC.com.

    AD-S.SAT

    87,7

    [3.45]

    91,4

    [3.60]

    15~

    UPWARD

    TILT

    45~

    DOWNWARD

    TILT

    135~

    HORIZONTAL

    PANNING

    CABLE PASS THRU

    n 6.0 MAXIMUM

    89,9

    [3.54]

    14,9

    [.59]

    70,0

    [2.76]

    135,2

    [5.32]

    Specifications

    System Details AD-S.SAT

    LF transducer N/A

    HF transducer 2.75 in (70 mm) weather treated paper cone woofer

    Effective frequency range 1, 2, 3 150 Hz – 20 kHz

    Rated noise power / voltage 25 W / 20 V (rms)

    Sensitivity [dB] (rated @1 W, 1 m) 3, 4 82

    Coverage (-6 dB) [°] 155° Conical

    Directivity index [dB] 6.0

    Directivity factor 4.0

    Maximum SPL [dB] (rated,

    1 m (continuous / peak)) 4 94 / 97 / 100

    Recommended amplifier 25 W per satellite

    (with 1st order high-pass filter at 200 Hz)

    Impedance 1652

    Connector 2-pole Euroblock

    Enclosure material ABS

    Grille material Aluminum

    Ingress protection IP-34

    Operating environment Designed for indoor use

    Operating temperature range -4 to 122° F (-20 to 50° C)

    Net weight 0.95 lb (433 g)

    Product dimensions including wall

    bracket (H x W x D) 3.6 x 3.5 x 5.4 in (92.5 x 89 x 136 mm)

    Shipping weight TBD (pair packed)

    Shipping dimensions (H x W x D) TBD (pair packed)

    Included accessories X-Mount Mini , Euroblock connector (pair packed)

    Safety agency ROHS, CE compliant.

    As part of QSC’s ongoing commitment to product development, specifications are subject to change

    without notice.

    AD-S.SAT Details

    1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174

    © 2019 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and

    other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.

    AD-S.SAT Spec Sheet 03/12/2019

    please recycle

    2

    0.5 -1

    -2.5 -4

    -5.5 -7

    -8.5 -10

    -11.5 -13

    -14.5 -16

    -17.5

    100 1k 10k

    90

    60

    30

    0

    -30

    -60

    -90

    Level (dB)

    Frequency (Hz)

    Degree (deg)

    20 50 200 500 2k 5k 20k

    Contour

    Frequency Response

    10 0 1 k 1 0k

    9 0

    8 0

    7 0

    6 0

    5 0

    50

    40

    30

    20

    10

    Frequenc y (Hz)

    Sound pressure, Level (dB)

    Impedance, Ampl itude (ohm)

    2 0 5 0 2 00 50 0 2k 5k 2 0 k

    8 5

    7 5

    6 5

    5 5

    45

    35

    25

    15

    Frequency Response (Intrinsic Correction™)

    Frequency Response

    Impedance

    Dimensions

    Footnotes:

    1) -10 dB from rated sensitivity

    2) Anechoic chamber, half-space, 4 V, 1 m

    3) Reference axis

    4) From Thiele-Small parameters @ 4 V, 1 m

    5) IEC, 2hrs, 16 ohm nominal, rated noise power [W], rated noise voltage [Vrms]

    6) Calculated from rated noise power and sensitivity

    7) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the

    axis perpendicular to the reference plane and passing through the center of the baffle. Vertical plane

    is the plane intersecting the reference plane at a right angle, including the reference axis and the taps

    selector knob. Horizontal plane is the plane intersecting the reference plane and the vertical plane at

    a right angle, including the reference axis.

    8) Mounted onto IEC baffle, 4 m

    9) 500 Hz - 5 kHz
