Price: $106.00
    Quantity:
    Availability: In Stock
    Usually ships In 24 - 48 hours

    Item #: AD-C.SAT-WH

    Description

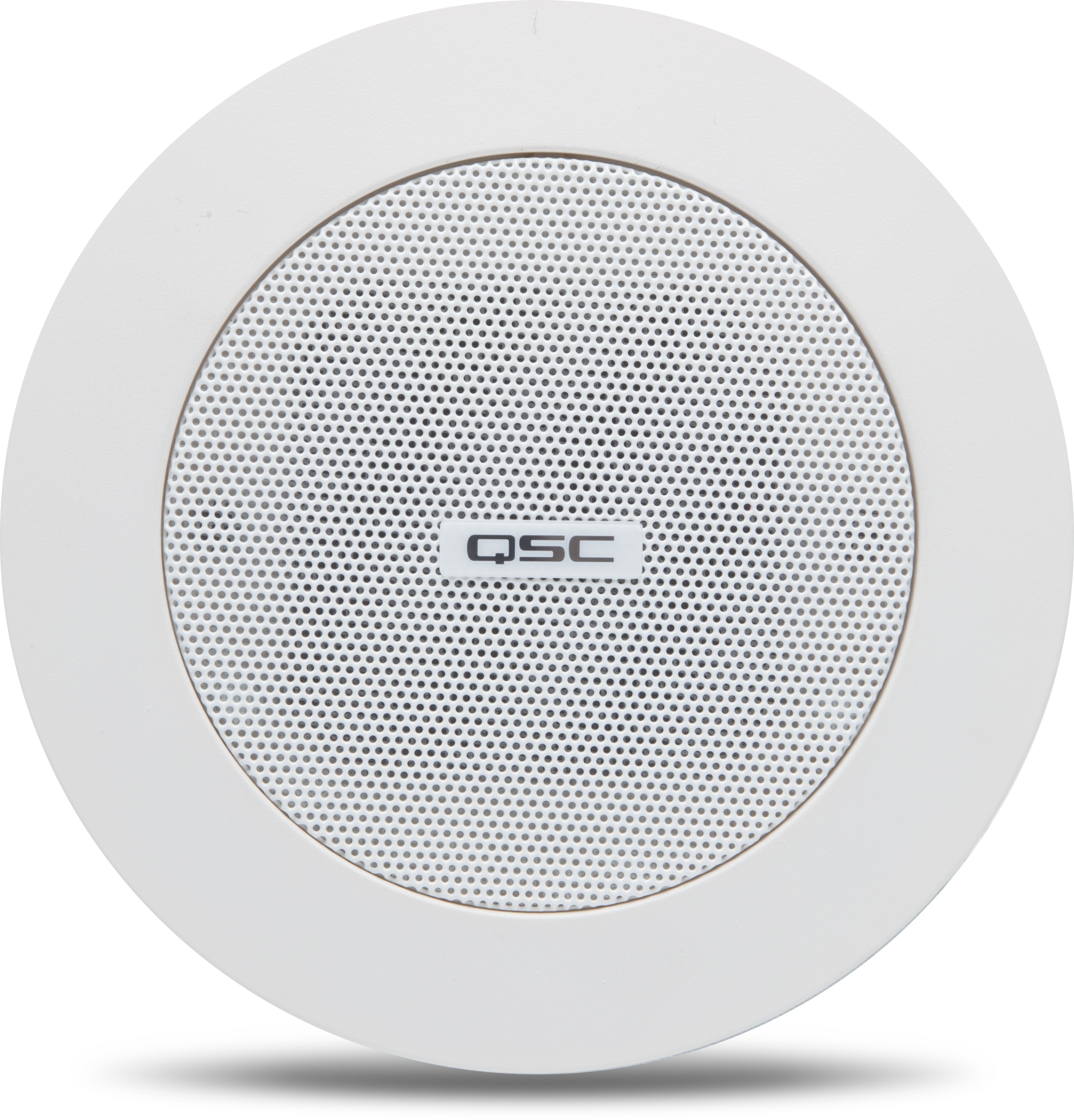

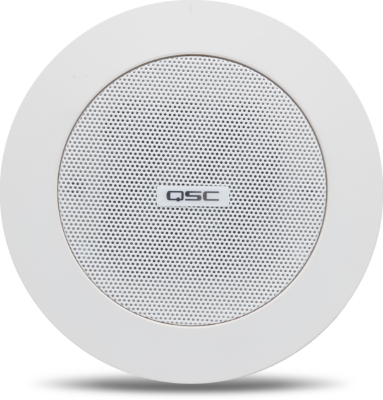

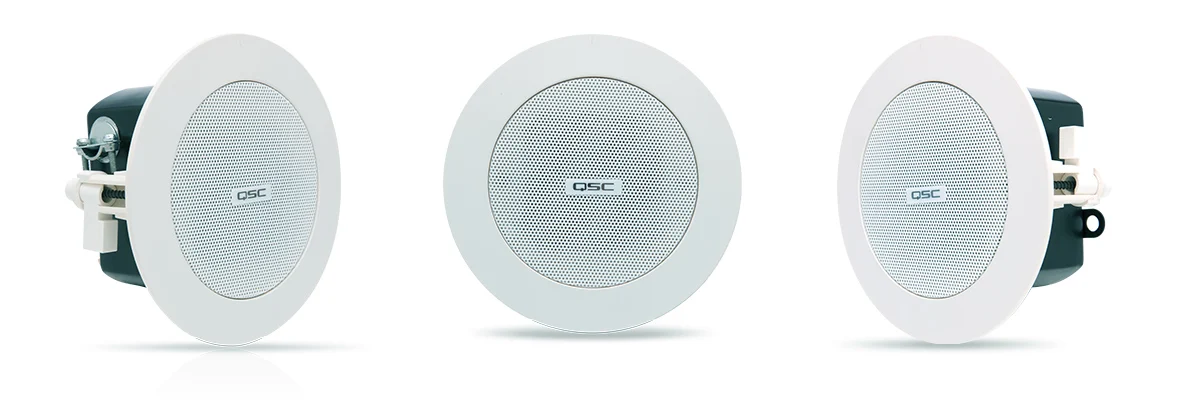

    2.75" Satellite ceiling speaker, 16Ω, 150° conical coverage, includes C-ring for blind mount installation. Available in white. Priced individually but must be purchased in pairs

    Specifications

    2.75-inch small format ceiling

    satellite loudspeaker

    Background Music Applications ∙ Retail ∙ Restaurants ∙ Coffee

    Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces

    AD-C.SAT

    AcousticDesign™ Series

    AD-C.SAT

    Features

    • Consistent tonal characteristics

    across the entire AcousticDesign

    Series for surface, ceiling, and

    pendant applications

    • Refined depth and clarity even at

    low volume settings

    • Mix-and-match capable, any

    subwoofer works with any satellite

    in the AD Series SUB/SAT line

    • Inverted aluminum dome dust cap

    • Rated at 16 Ω

    • Snap-fit magnetic grill

    • Locking 2-pole Euroblock style

    connectors

    • Removable conduit cover plate

    • Removable logo

    • 2x long travel dog-ear blind mount

    system

    • Intrinsic Correction™ voicings

    available via Q-SYS Platform

    including CXD-Q Series amplifiers

    • Available in black (RAL 9011) or

    white (RAL 9010)

    • Complete EASE, CF2, CAD, &

    BIM information available online

    • UL1480 and UL2043 certified

    The QSC AD-C.SAT is part of the

    AcousticDesign™ Series SUB/SAT

    loudspeaker line which are ideally suited for

    background music applications that require

    refined depth and clarity even at lower

    volume settings.

    The AcousticDesign Series offers integrators

    a premium quality installed sound solution

    where performance, consistent coverage,

    and aesthetics are paramount. Specifically

    designed to maintain a consistent tonal

    characteristic across the entire family in

    ceiling, surface, and pendant enclosures,

    the AcousticDesign Series allows integrators

    seamless transitions within blended

    installations.

    The AcousticDesign Series SUB/SAT

    loudspeakers have been specifically

    designed to be mix-and-match capable.

    Any combination of satellites may be paired

    with any subwoofer in the SUB/SAT line.

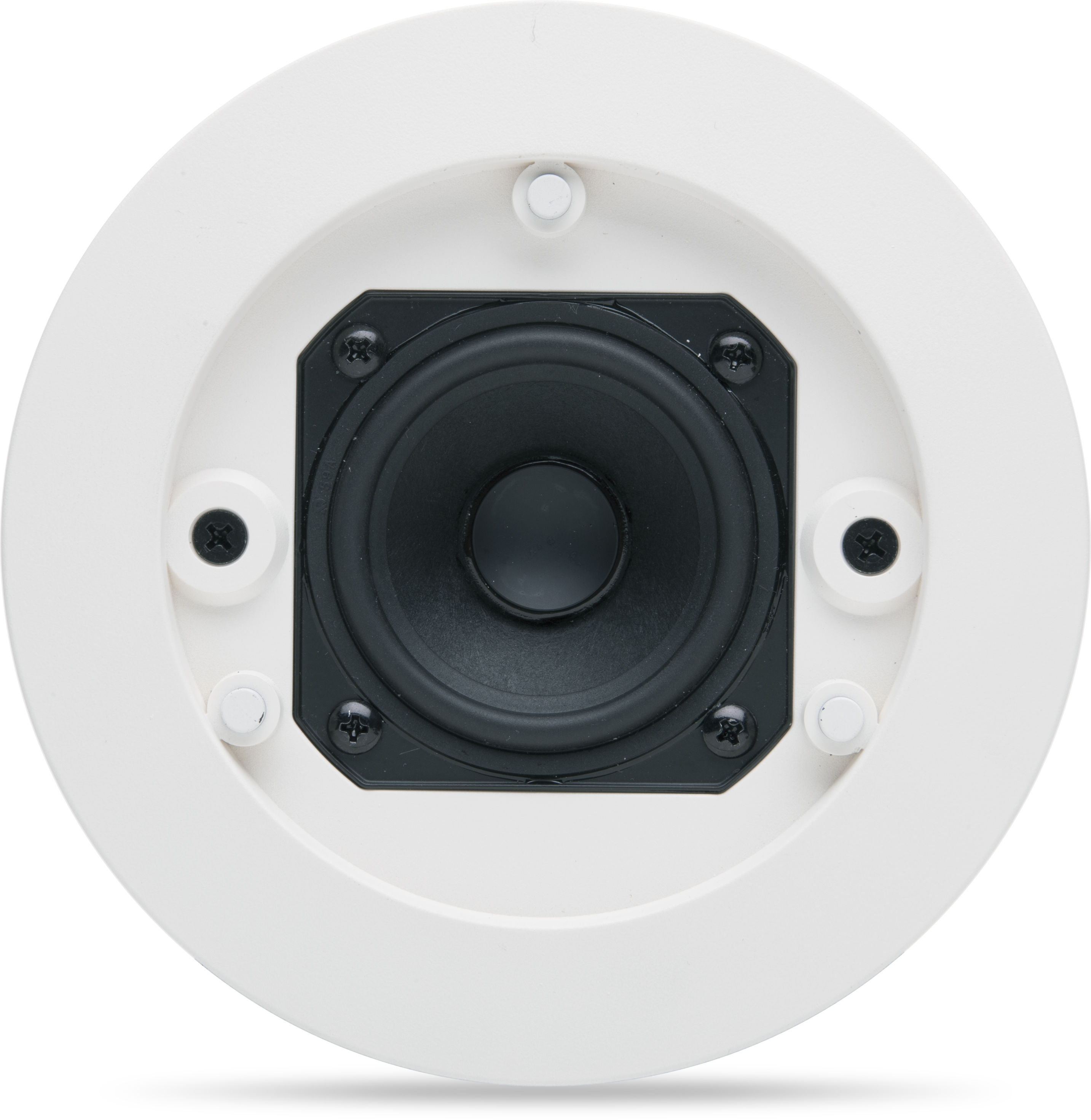

    The AD-C.SAT features a high quality

    2.75-inch weather treated paper cone

    woofer with an inverted aluminum dust cap

    for extended high frequency presence within

    a sealed enclosure.

    These loudspeakers are rated at 16 Ω, and

    up to four satellites may be connected to

    any AcousticDesign Series SUB/SAT

    subwoofer's high-pass filtered outputs.

    Satellites also may be used as stand-alone

    loudspeakers using an external high-pass

    filter.

    The input is located behind a removable

    conduit cover plate with captive screws to

    prevent loss during installation and uses a

    locking 2-pole Euroblock style connectors

    capable of 12AWG (2 mm) wire thickness.

    To retain their stylish aesthetics, the rugged

    ABS baffle is further protected by using UV

    inhibitors that prevent discoloration and by

    a powder coated steel back can. The

    magnetic grille features a stick-on logo that

    can be removed blemish-free for

    installations where branding is not

    permitted.

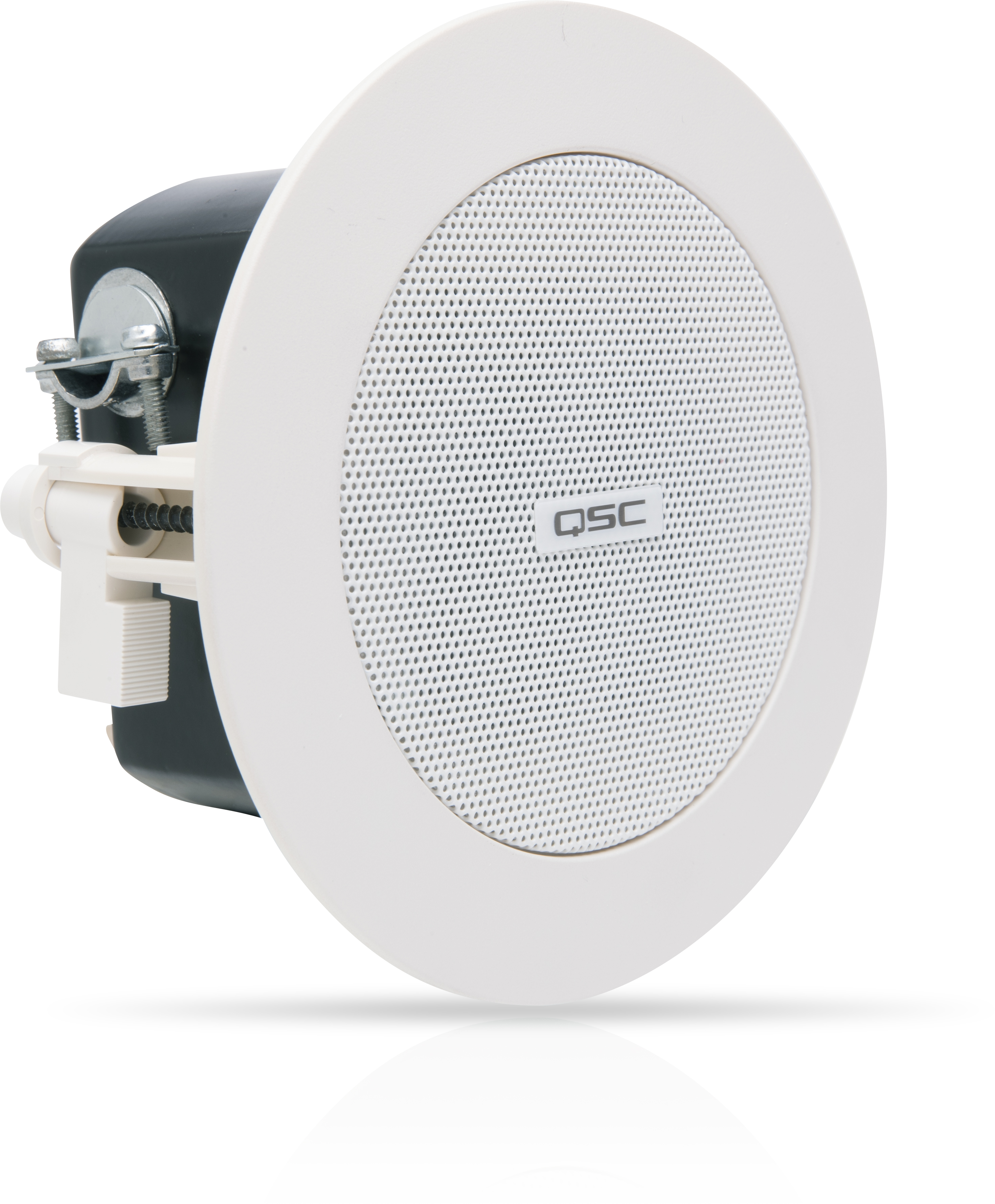

    Installers will appreciate the 2x, long travel

    dog-ear blind mounting system, which

    captures from 0 - 1.75 inches of ceiling

    thickness.

    Intrinsic Correction™ voicings that optimize

    performance and speed the install process

    are easily deployed via the MP-M Series

    music and paging mixers as well as Q-SYS

    Platforms including CXD-Q Series amplifiers,

    as part of a complete QSC systems

    solution.

    The AD-C.SAT is available in QSC standard

    black (RAL 9011) or white (RAL 9010) and

    may be painted to match any decor.

    For your system integration needs,

    complete EASE, CF2, CAD, and BIM files

    will be available for download at QSC.com.

    AD-C.SAT Details

    Specifications

    System Details AD-C.SAT

    LF transducer N/A

    HF transducer 2.75 in (70 mm) weather treated paper cone

    woofer

    Effective frequency range 1,2,3,7 120 Hz – 20 kHz

    Rated noise power / voltage 5 25 W / 20 V (rms)

    Sensitivity [dB] (rated @1 W, 1 m) 4 83

    Coverage (-6 dB) 2,7,8,9 170° Conical

    Directivity index [dB] 2,7,8,9 4.4

    Directivity factor 2,7,8,9 2.75

    Maximum SPL [dB] (continuous / peak) 6 97 / 100 / 103

    Recommended amplifier 25 W per satellite

    (with 1st order high-pass filter at 200 Hz)

    Impedance 16 Ω

    Connector 2-pole Euroblock connectors

    Enclosure material Stamped steel, injection-molded ABS baffle

    Grille material Stamped steel, perforated, and powder-coated

    Ingress protection IP-34

    Operating environment Designed for indoor use

    Operating temperature range -4 to 122° F (-20 to 50° C)

    Cutout dimension Ø 4.5 in (Ø 115 mm)

    Net weight 1.39 lb (630 g)

    Product dimensions (Ø x H) Ø 5.9 x 3.3 in (Ø 149.6 x 83.4 mm)

    Shipping weight (pair packed) 5.1 lb / 2.3 kg

    Shipping dimensions (H x W x D) (pair packed) 15 x 9.3 x 3.8 in (382 x 237 x 97 mm)

    Shipping weight (master carton , 2 pairs) 10.9 lb / 5 kg

    Shipping dimensions (H x W x D) (master carton, 2 pairs) 15.5 x 10 x 8.5 in (394 x 254 x 216 mm)

    Included accessories C-ring, Euroblock connector, cut-out template,

    grill (pair packed)

    Safety agency UL1480, UL2043, NFPA90, NFPA70 suitable for

    use in air handling spaces. ROHS, CE compliant.

    Baffle meets UL94-V0 and UL94-5VB flamibility

    rating; in accordance with IEC60849 / EN60849

    systems.

    As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice.

    Footnotes:

    1) -10 dB from rated sensitivity

    2) Anechoic chamber, half-space, 4 V, 1 m

    3) Reference axis

    4) From Thiele-Small parameters @ 4 V, 1 m

    5) IEC, 2hrs, 16 ohm nominal, rated noise power [W], rated noise voltage [Vrms]

    6) Calculated from rated noise power and sensitivity

    7) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis

    perpendicular to the reference plane and passing through the center of the baffle. Vertical plane is the plane

    intersecting the reference plane at a right angle, including the reference axis and the taps selector knob.

    Horizontal plane is the plane intersecting the reference plane and the vertical plane at a right angle, including

    the reference axis.

    8) Mounted onto IEC baffle, 4 m

    9) 500 Hz - 5 kHz

    1k 10 k

    1 80

    1 50

    1 20

    9 0

    6 0

    3 0

    0

    Frequenc y (Hz)

    Beamwidth (-6dB) (deg)

    2 00 5 00 2 k 5 k 2 0 k

    Beamwidth

    Sound pressure, Level

    100 1k 10k

    90

    80

    70

    60

    50

    50

    40

    30

    20

    10

    Frequency (Hz)

    Sound pressure, Level (dB)

    Impedance (ohm)

    20 50 200 500 2k 5k 20k

    85

    75

    65

    55

    45

    35

    25

    15

    Frequency Response (Raw)

    Frequency Response (Intrinsic Correction™)

    Impedance

    n 110.0

    [4.33]

    2X 44.0

    [1.73]

    4.9

    [0.19]

    76.3

    [3.00]

    83.4

    [3.28]

    n 149.6

    [5.89]

    Dimensions
