QSC AC-C8T

Features

High quality transducers provide exceptional clarity through the critical voice range.
Improved musicality often not seen in typical BGM class products.
Ported baffle for increased low frequency extension down to 52 Hz.
Low saturation 70/100V transformers with 8 ohm bypass.
4-pole Euroblock connector eases system wiring.
Advanced voicing via QSC Intrinsic Correction™, applied using the Q-SYS networking platform or CXD Series Amplifiers.
White (RAL 9010) with UV inhibitors to match complimenting QSC product families.
Complete EASE, CF2, CAD, & BIM information available online.

Price: $221.00

Quantity:

Estimate Shipping

Availability: In Stock
Usually ships In 24 - 48 hours

Item #: AC-C8T

Description

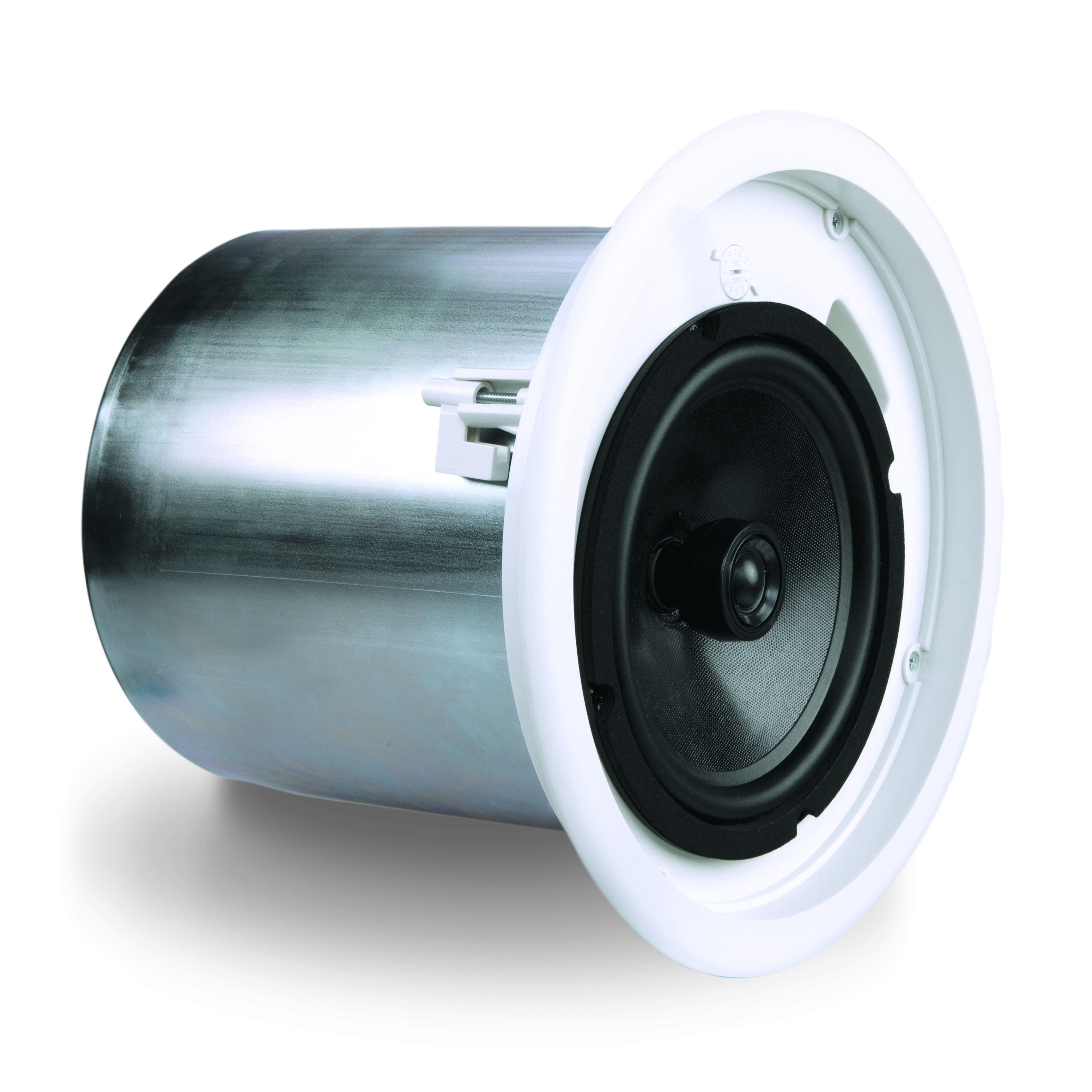

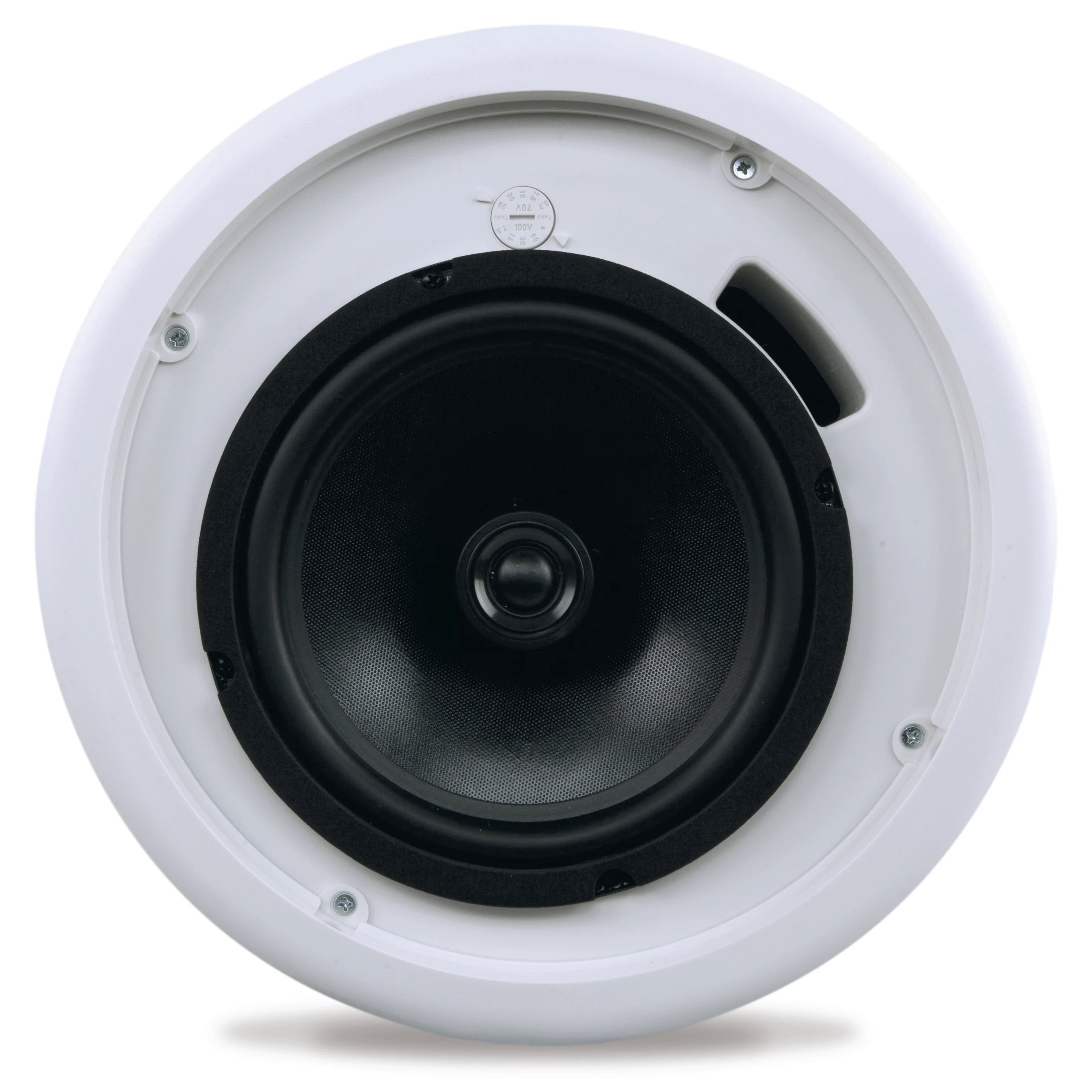

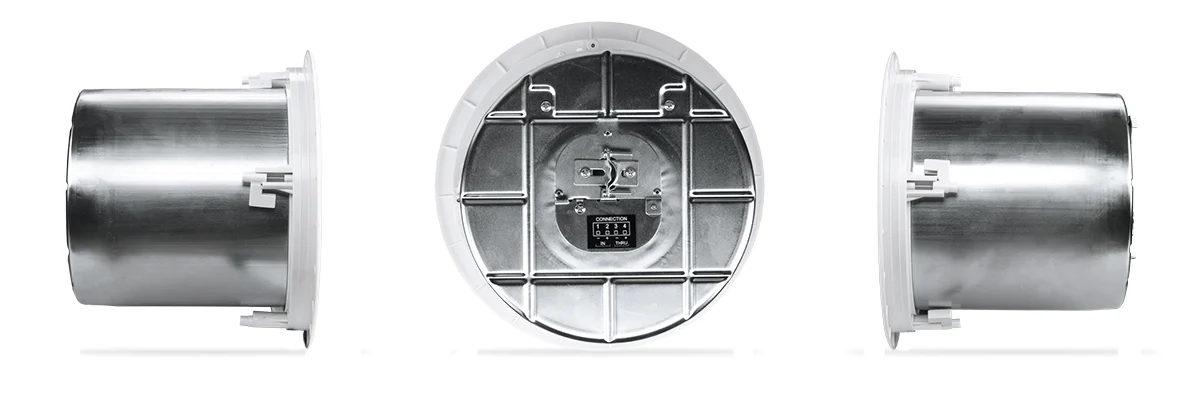

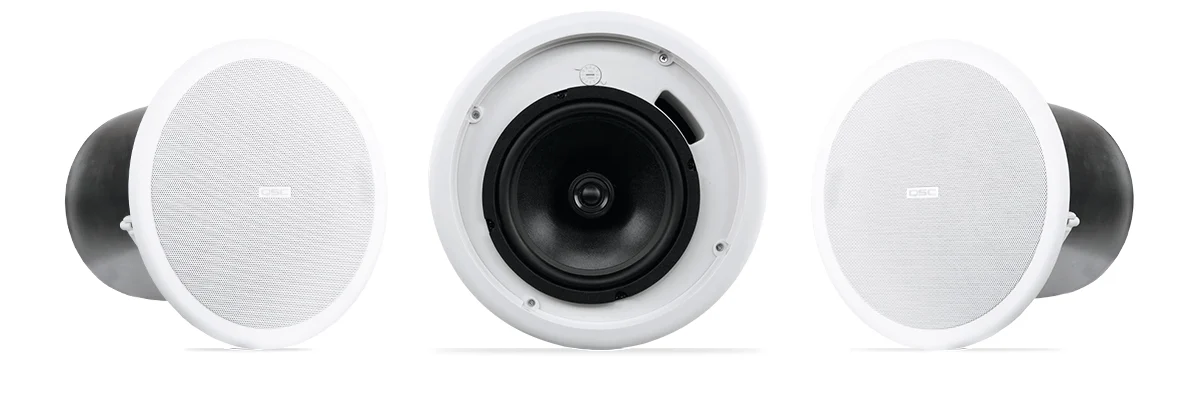

8" Two-way ceiling speaker, 70/100V transformer with 8Ω bypass, 100° conical coverage, includes C-ring and rails for blind mount installation. Priced individually but must be purchased in pairs.

Specifications

Specifications	AC-C8T
Effective frequency range	52 Hz – 20 kHz
Rated noise power / voltage	80 watts / 25.3 volts (rms)
Broad-band sensitivity	89 dB SPL
Coverage angle (-6 dB)	100° (500 Hz to 5 kHz)
Maximum continuous SPL	108 dB
Maximum peak SPL	114 dB
Rated impedance	8 ohms
Transformer taps:
70 V:	60, 30, 15, 7.5, 3.8 watts and 8-ohm bypass
100V:	60, 30, 15, 7.5 watts and 8-ohm bypass
HF Transducer	22 mm [.86 in] silk dome tweeter, coaxially mounted
LF Transducer	210 mm [8 in] Polypropylene cone with butyl rubber surround
Input connector type	Euroblock connector with parallel output terminals
Baffle material	Painted ABS polymer
Grille material	Painted steel
Back can material	Plated steel
Testing	Listed UL1480, UL2043 safe for use in air handling space
Net weight	5.2 kg [11.5 lb]
Product dimensions	Ø316 x 288 mm [Ø12.4 x 11.3 in]
Cut-out Dimensions	Ø285 mm [Ø11.2 in]
Ceiling Capture Thickness	6 - 38 mm [0.25 - 1.5 in]
Shipping weight	13.3 kg [29.3 lb] (pair packed)
Shipping dimensions	743 x 381 x 381 mm [29.3 x 15 x 15 in]
Included accessories	Rails & C-ring for ceiling tile installation
