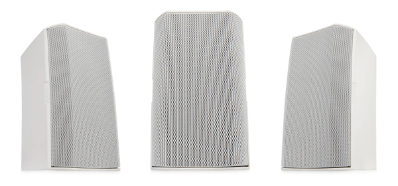

    6.5" Two-way surface speaker, 70/100V transformer with 8Ω bypass, 105° conical DMT™ coverage, includes X-Mount™ and weather input cup. Available in white. Priced individually but must be purchased in pairs.

    Specifications

    Restaurant ∙ Retail ∙ Audio Visual ∙ Education ∙ Concourses ∙ Casinos ∙

    Transportation Terminals ∙ Worship Facilities ∙ Large System Ancillary Support

    AD-S6T

    AcousticDesign™ Series

    AD-S6T

    Features

    • DMT™ (Directivity Matched

    Transition) ensures smooth,

    uniform frequency response over

    the coverage area

    • X-Mount™ system enables the

    loudspeaker to be easily installed

    and deployed at a variety of

    angles without slipping over time

    • Advanced voicing filter sets

    using QSC Intrinsic Correction™

    available through either Q-SYS

    processing or CXD Series

    amplifier platforms

    • Low saturation and low loss

    70/100V transformers with 8Ω

    bypass

    • Lightweight ABS enclosures offer

    long-term durability and lasting

    good looks

    • Sealed input panel cover and

    powder coated aluminum grilles

    for added weather resistance

    • Meets IEC60529 IP-54 for dust

    and splash resistance

    • Available in black (RAL 9011) or

    white (RAL 9010)

    • Complete EASE, CAD & BIM

    information available online

    The QSC AcousticDesign™ AD-S6T is a

    surface mounted 70/100V, 6.5" two-way

    loudspeaker system, ideally suited for a

    wide variety of foreground and background

    sound reinforcement applications.

    AcousticDesign™ series offers integrators a

    premium quality installed sound solution

    where performance, coverage, and

    aesthetics are paramount. Combined with

    unprecedented ease-of-installation and high

    weather resistance, the AcousticDesign™

    Series provides integrators a versitile and

    confident response.

    The AD-S6T features a high quality 6.5"

    weather treated paper cone woofer on a

    1.5” voice coil. A carefully selected 1” silk

    dome tweeter with a 1” voice coil perfectly

    matches the sensitivity and performance of

    the woofer for outstanding full range

    reproduction.

    Consistent and even 105° axisymmetric

    (conical) coverage is realized by means

    of DMT™ (Directivity Matched Transition).

    This innovation matches the high frequency

    wavegide to the woofer coverage at the

    crossover point, resulting in a coherent

    transducer transition and improved off

    axis response.

    To maintain this frequency response, the

    AD-S6T utilizes a variable tap 60 watt low

    saturation and low loss 70/100V

    transformer with 8Ω bypass, accessible via

    a rotary selector located on the enclosure

    back under a weather grommet for

    improved weather resistance.

    All AcousticDesign™ Series surface-mount

    loudspeakers are housed in rugged ABS

    enclosures for long-term durability. Sealed

    input panel covers and powder coated

    aluminum grilles add weather resistance,

    exceeding IEC60529 IP-54 for dust and

    splash resistance.

    Installers will appreciate the award winning

    X-Mount™ system, included with each full

    range AcousticDesign™ model. This

    ingenious mounting solution achieves

    unprecedented ease-of-installation in either

    horizontal, vertical, wall, or ceiling

    deployments. Knurled surfaces at the pivot

    planes ensure the load will not drift or sag

    over time. Articulation marks allow

    preconfiguration of the X-Mount™ while on

    the ground with no special tools required.

    Once secure, the loudspeaker installs in

    seconds, allowing the installer to work safer,

    smarter, and faster with repeatable results.

    To further enhance performance and speed

    of install with optimum result, advanced

    voicing filter sets using QSC Intrinsic

    Correction™ techniques are obtainable

    using the Q-SYS Platform including CXD

    Series amplifiers for a complete QSC

    systems solution.

    Sensitive to aesthetic demand, the

    AcousticDesign™ Series feature a stylish

    appearance free of obtrusive logo

    adornments. Complimenting adjacent

    product families, AcousticDesign™ surface

    loudspeakers are available in QSC standard

    black (RAL 9011) or white (RAL 9010) and

    may be painted to match any decor.

    To assist in successful systems integration,

    complete EASE, CAD, and BIM files are

    available for online download at QSC.com.

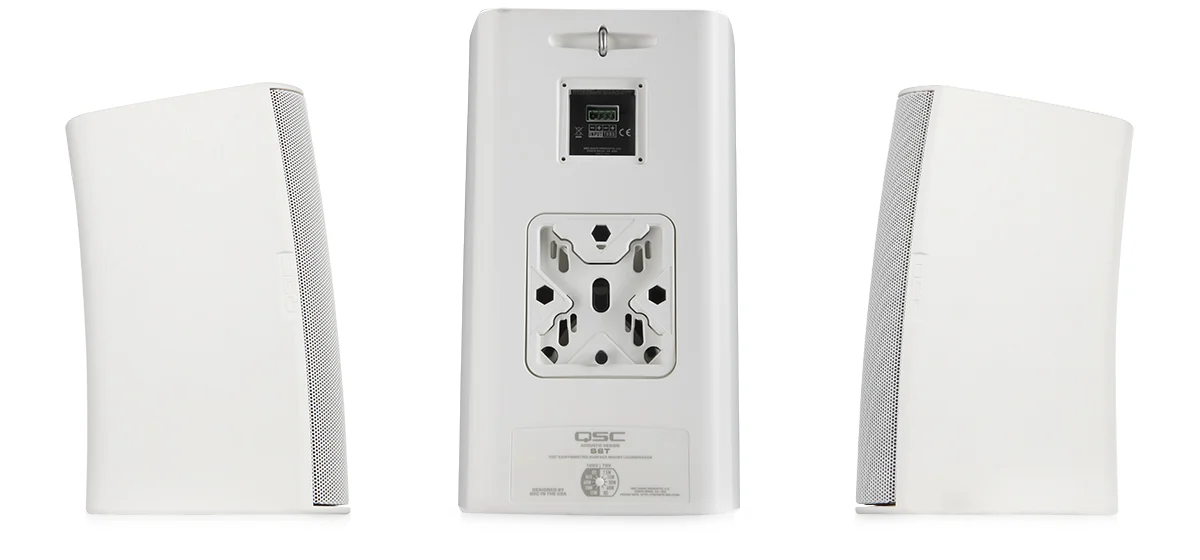

    X-Mount™ (included)

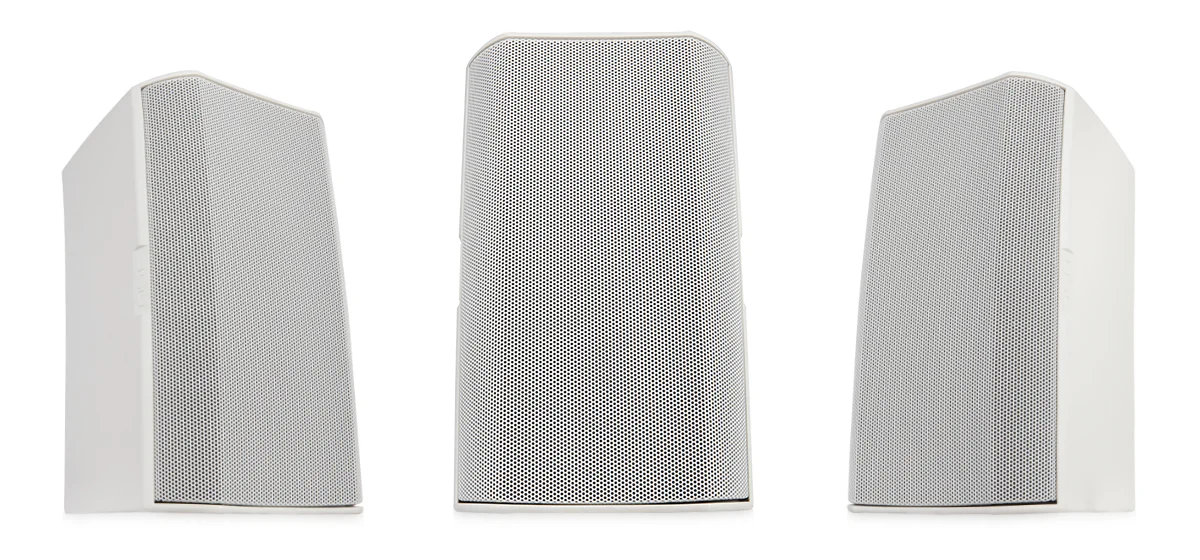

    6.5" small format, surface

    mount loudspeaker

    AD-S6T Details

    100 1k 10k

    100

    90

    80

    70

    60

    50

    80

    64

    48

    32

    16

    0

    Frequency (Hz)

    Sound pressure, Level (dB)

    Impedance, Amplitude (ohm)

    20 50 200 500 2k 5k 20k

    95

    85

    65

    55

    72

    56

    24

    8

    FLC : Frequency Response (Raw)

    FLC : Frequency Response (Intrins ic C orrec tion™)

    FRC : Impedance (8 O hm bypas s )

    0

    -2

    -4

    -6

    -8

    -10

    -12

    1k 10k

    90

    60

    30

    0

    -30

    -60

    -90

    Sound pressure, Level (dB)

    Frequency (Hz)

    (deg)

    500 2k 5k 20k

    Horizontal Contour: Impedance / Frequence Response:

    System Details AD-S6T

    HF transducer 1” silk dome tweeter / 1” voice-coil horn loaded

    LF transducer 6.5” weather treated paper cone woofer,

    1.5” / 38mm voice-coil

    Effective frequency range1 60 – 20k Hz

    Rated noise power / voltage2 150 watts / 35 volts (rms)

    Broad-band sensitivity3 89 dB SPL

    Coverage angle (-6 dB) 105°

    Directivity factor (Q) 5

    Directivity Index 7 dB

    Maximum continuous SPL4 110 dB

    Maximum peak SPL4 116 dB

    Rated impedance 8 ohms

    Recommended amplifier power 300 watts

    Transformer taps 70 V: 60, 30, 15, 7.5 watts and 8 ohm bypass

    100V: 60, 30, 15 watts and 8 ohm bypass

    Input connector type Euroblock connector with parallel output

    Enclosure material Painted ABS polymer

    Grille material Powder coated aluminum

    Enclosure Details

    Ingress protection IP-54

    Operating environment Designed for indoor and outdoor use

    Testing The AD Series loudspeakers qualified for outdoor

    use using the following tests:

    Salt fog: MIL-STD-810G Method 509.5 for 100 hrs.

    Humidity: MIL-STD-810G Method 507.5, Natural

    cycle B2, cyclic high RH for 7 days

    High and low temperature: tested according to QSC

    internal standards between -20° and 50° C

    Operating Temperature Range -20 to 50 °C / -4 to 122 °F

    Net weight 13.6 lbs / 6.2 kg

    Product dimensions 14.4” x 8.5” x 8.5” (365 x 215 x 215mm)

    Shipping weight 33.4 lbs / 15.2 kg (pair packed)

    Shipping dimensions 20 x 12” X 23” (510 x 305 x 585mm) (pair packed)

    Included accessories X-Mount mounting system, euroblock connector,

    input panel cover

    1

    Free-field, -10 dB from on-axis sensitivity

    2

    IEC60268-1 noise signal for 2 Hrs

    3

    On-Axis, free-field sensitivity, 2.83V, 1 m

    4

    Calculated from rated noise voltage and sensitivity

    Dimensions: Specifi cations:

    215 mm (8.5 in)

    215 mm (8.5 in)

    215 mm (8.5 in)

    365 mm (14.4 in)

    215 mm (8.5 in)

    365 mm (14.4 in)

    215 mm (8.5 in)

    215 mm (8.5 in)

    215 mm (8.5 in)

    365 mm (14.4 in)

    215 mm (8.5 in)

    365 mm (14.4 in)

    215 mm (8.5 in)

    215 mm (8.5 in)

    215 mm (8.5 in)

    365 mm (14.4 in)

    215 mm (8.5 in)

    365 mm (14.4 in)

    As part of QSC’s ongoing commitment to product development, specifications are

    subject to change without notice.
