    Description

    6.5" Dual voice-coil surface subwoofer, provides High-pass output for up to four (4) satellite speakers, 70/100V transformer for mono or bypass, Low-Z mono or stereo operation, includes wall bracket for surface installation. Available in black

    Specifications

    6.5-inch dual voice coil, small

    format surface subwoofer

    Background Music Applications ∙ Retail ∙ Restaurants

    Coffee Shops ∙ Fine Dining ∙ Hospitality ∙ Commercial Spaces

    AcousticDesign™ Series

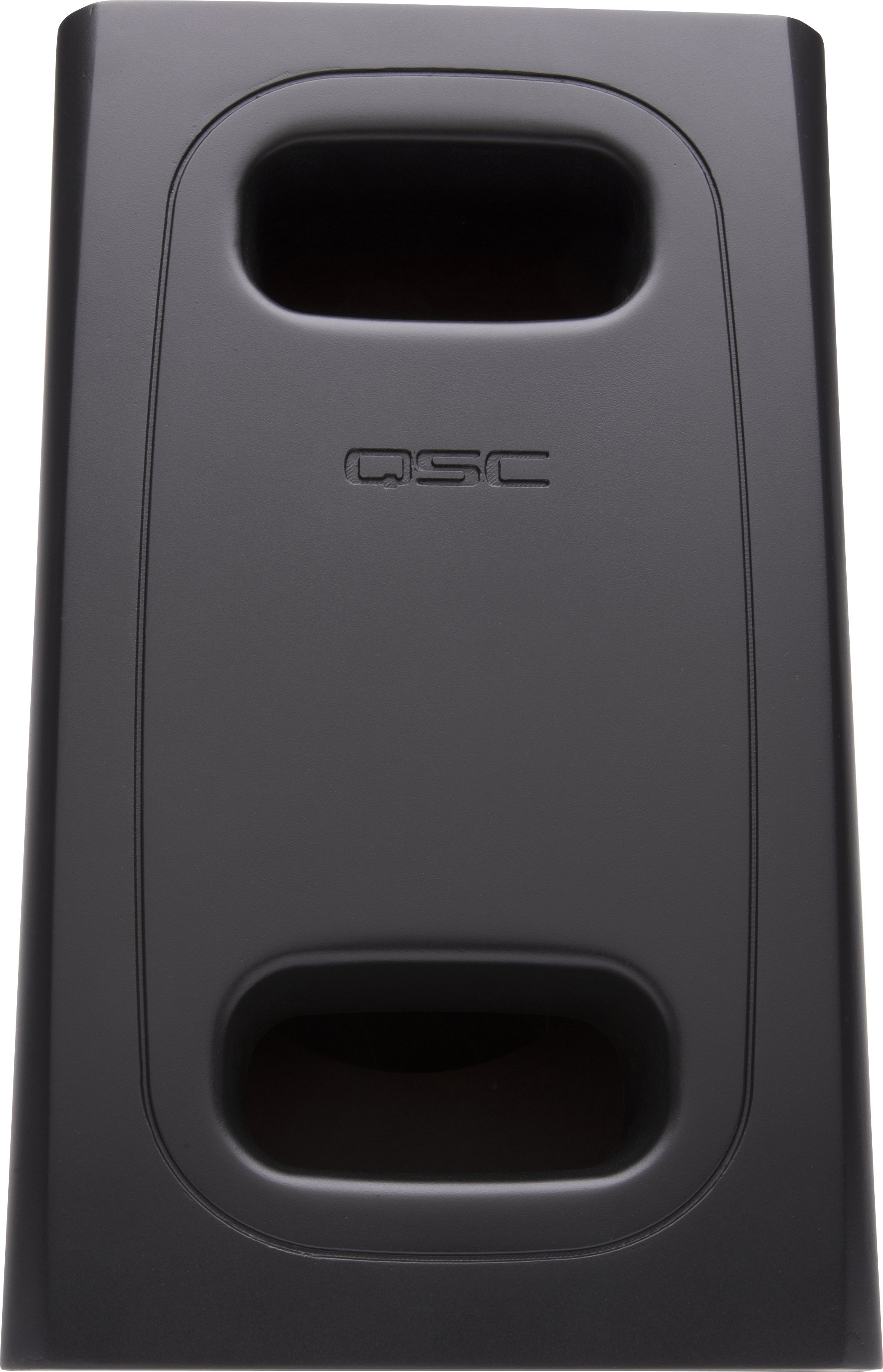

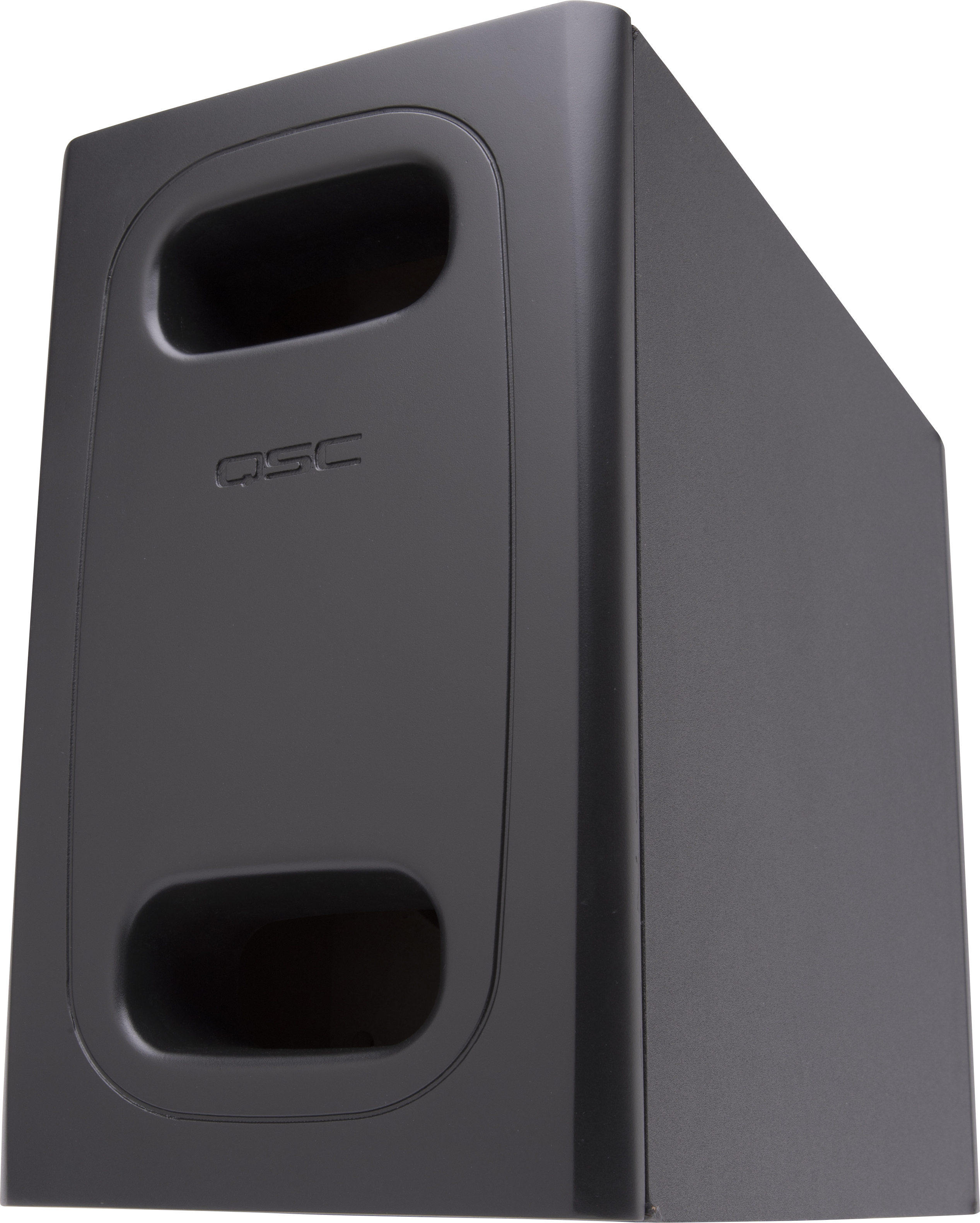

    AD-S.SUB

    Features

    • Consistent tonal characteristics

    across the entire AcousticDesign

    Series for surface, ceiling, and

    pendant applications

    • Refined depth and clarity even at

    low volume settings

    • Mix-and-match capable, any

    subwoofer with any satellite in the

    AD Series SUB/SAT line

    • Dual voice-coil for improved

    thermal dissipation and higher

    output

    • Low-saturation and low-loss

    70 / 100 V transformers in mono

    mode

    • Low-Z mono or stereo

    configurable

    • 4x built-in high-pass filtered

    outputs

    • Locking 4-pole Euroblock

    connectors

    • Reversible rear panel cover

    • Simple configuration for fast and

    reliable deployment

    • Reversible V-wall mount hardware

    • Intrinsic Correction™ voicings

    available via MP-M Series mixers

    and the Q-SYS Platform, including

    CXD-Q Series amplifiers

    • Available in black (RAL 9011) or

    white (RAL 9010)

    • Complete EASE, CF2, CAD, &

    BIM information available online

    The QSC AD-S.SUB is part of the

    AcousticDesign™ Series SUB/SAT

    loudspeaker line which are ideally suited for

    background music applications that require

    refined depth and clarity even at lower volume

    settings.

    The AcousticDesign Series offers integrators

    a premium quality installed sound solution

    where performance, consistent coverage, and

    aesthetics are paramount. Specifically

    designed to maintain a consistent tonal

    characteristic across the entire family in

    ceiling, surface, and pendant enclosures, the

    AcousticDesign Series allows integrators

    seamless transitions within blended

    installations.

    The AcousticDesign Series SUB/SAT

    loudspeakers have been specifically designed

    to be mix-and-match capable. Any

    combination of satellites may be paired with

    any subwoofer in the SUB/SAT line.

    The AD-S.SUB features a high quality

    6.5-inch weather treated paper cone woofer

    on a dual voice-coil for improved thermal

    dissipation and higher output within a small

    form factor.

    The accurate frequency response of the

    AD-S.SUB is maintained even in 70 / 100 V

    applications by use of a low-loss, lowsaturation 100 W transformer with selectable

    taps, including 4 Ω bypass in mono mode.

    The AD-S.SUB includes built-in high-pass

    filtered outputs for connecting up to four

    AcousticDesign Series satellite loudspeakers.

    This feature greatly reduces system setup,

    amplifier channel count, and allows for ease

    of wiring.

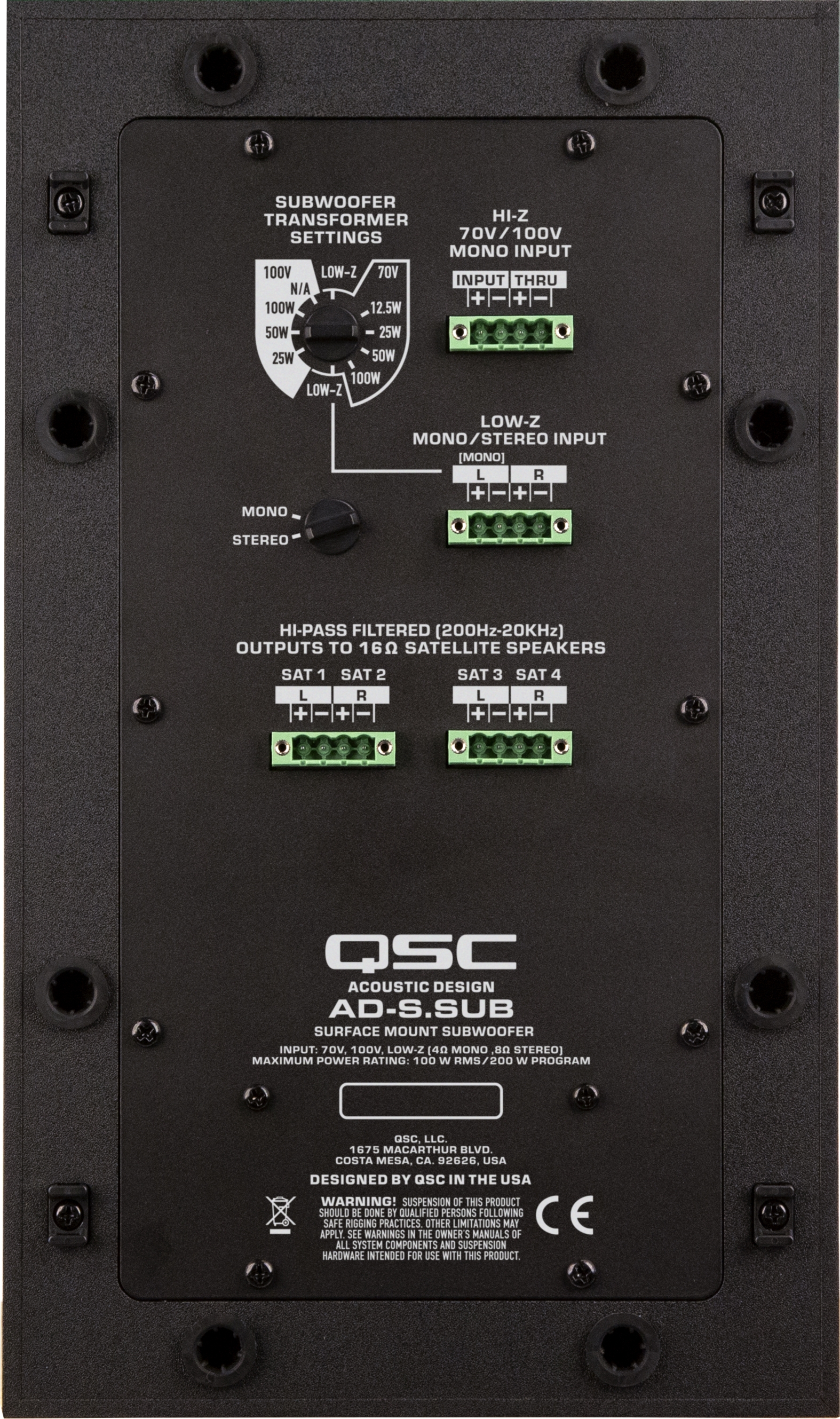

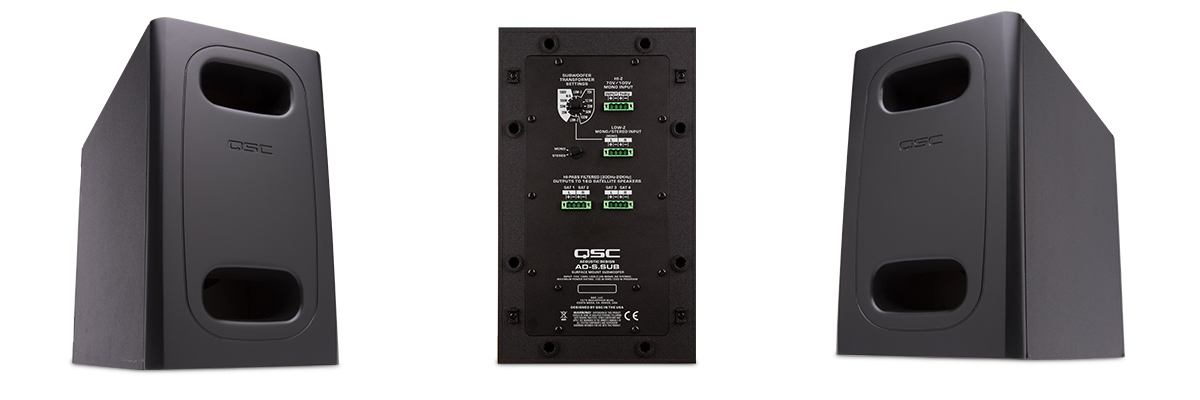

    The inputs and outputs are located behind

    a reversible rear panel. The input panel

    features convenient cable tie anchor points

    to dress the installation. All in-thru and

    outputs are terminated to locking 4-pole

    Euroblock style connectors capable of

    12AWG (2 mm) wire thickness.

    Configuring the AD-S.SUB for operation is

    made simple by clearly defined rotary

    selectors and isolated inputs allowing for

    faster and more reliable setup.

    The two-piece mounting system is a slip

    locking V design with minimal wall

    protrusion and has a set screw to lock in

    place. The wall mounting hardware is also

    reversible allowing the port tubes to be

    oriented in the desired direction.

    Intrinsic Correction™ voicings that optimize

    performance and speed the install process

    are easily deployed via the MP-M Series

    music and paging mixers as well as the

    Q-SYS Platforms, including CXD-Q Series

    amplifiers, as part of a complete QSC

    systems solution.

    The AD-S.SUB is available in QSC standard

    black (RAL 9011) or white (RAL 9010).

    For your system integration needs,

    complete EASE, CF2, CAD, and BIM files

    will be available for download at QSC.com.

    AD-S.SUB

    AD-S.SUB Details

    Specifications

    System Details AD-S.SUB

    LF transducer 6.5 in (165 mm) dual voice coil weather treated paper cone woofer

    HF transducer N/A

    Effective frequency range 1, 2, 3 45 Hz – 150 Hz

    Rated noise power / voltage 6 100 W / 20 V (rms)

    Sensitivity [dB] (rated @1 W, 1 m) 4 86

    Coverage (-6 dB) Omni

    Directivity index [dB] 7, 2 2

    Directivity factor 7, 2 1.58

    Maximum SPL [dB]

    (continuous / program / peak) 6 105 / 108 / 111

    Recommended amplifier 100 W

    Transformer taps / impedance 70 V: 100, 50, 25, 12.5 W (mono only)

    100 V: 100, 50, 25 W (mono only)

    Bypass: 4 Ω mono or 8 Ω + 8 Ω stereo

    Connectors Hi-Z mono input: 4-pole Euroblock with thru output

    Low-Z input: 4-pole Euroblock, left (mono) and right

    Hi-pass output: x2 4-Pole Euroblock for x4 satellites

    Enclosure material Vinyl wrapped medium density fiberboard

    Port baffle / cover panel ABS

    Ingress protection NA

    Operating environment Designed for indoor use

    Operating temperature range -4 to 122° F (-20 to 50° C)

    Net weight 23.6 lb (10.7 kg)

    Product dimensions (H x W x D) 13.8 x 8.2 x 17 in (350 x 209 x 432 mm)

    Shipping weight 13.94 / (30.73 kg)

    Shipping dimensions (H x W x D) 535 x 315 x 473

    Included accessories V-wall bracket, 4x Euroblock connector, rear cover panel, adhesive

    rubber feet

    Safety agency Transformer UL registered per UL1876, ROHS, CE compliant

    As part of QSC’s ongoing commitment to product development, specifications are subject to change without notice.

    Footnotes:

    1) -10 dB from rated sensitivity

    2) Reference plane is the plane coincident with the loudspeaker baffle plane. Reference axis is the axis perpendicular

    to the reference plane and passing through the center of the baffle. Vertical plane is the plane intersecting the

    reference plane at a right angle, including the reference axis and the taps selector knob. Horizontal plane is the plane

    intersecting the reference plane and the vertical plane at a right angle, including the reference axis.

    3) Anechoic chamber, half-space (rear panel on baffle), 4V, 1m

    4) Calculated from Thiele-Small parameters @ 2V, 1m.

    5) IEC, 2hrs, 16 ohm nominal, rated noise power (W), rated noise voltage (Vrms)

    6) Calculated from max input power and sensitivity.

    7) 50 Hz to 200 Hz
